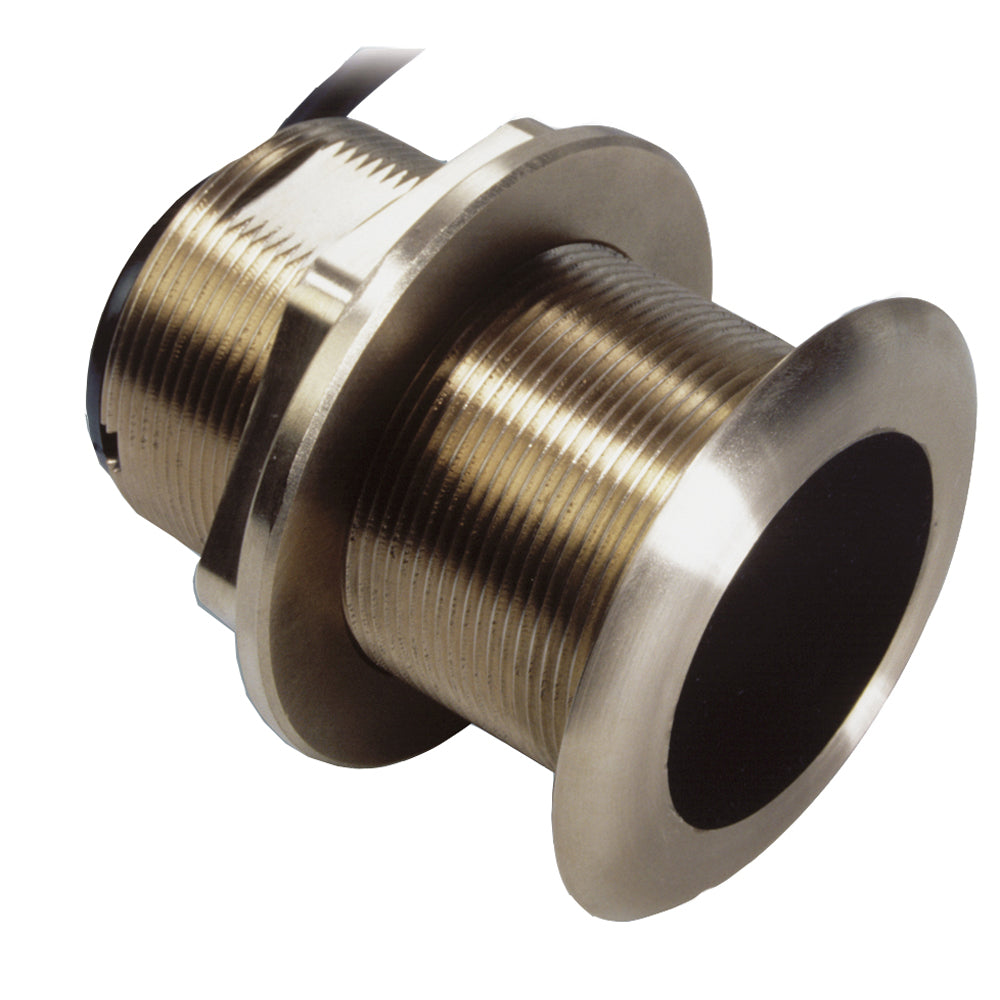

Raymarine B60-12, 12 Degree Tilted Element Transducer f/DSM250 / DSM30 / DSM300

Raymarine B60-12, 12 Degree Tilted Element Transducer f/DSM250 / DSM30 / DSM300

Unlock spectacular sub-surface depth soundings and monitor deep marine species tracking with the professional acoustic transducer elements of Raymarine. Precision-tuned to handle wide-spectrum CHIRP, DownVision™, and RealVision 3D outputs, these heavy-duty hull mounts provide clear target discrimination that auto-compensates for waves and engine vibration.

Product Overview & Core Highlights:

B60 Tilted Element™ 12°

12° titled version is designed for 8° - 15° deadrise angles

For use with Raymarine DSM250/DSM300/DSM300G/DSM30/CP300


The bronze B60-12° provide a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for more accurate depth readings. The nearly flush housing minimizes drag with only 5 mm (3/16") extending outside of the hull.

Features:

• Depth/Temp

• 50/200 kHz

• 600w RMS

• Mid-performance

• Bronze

Specifications:

• Temperature: Yes
• Speed Included: No
• Mounting Style: Thru-Hull
• Imaging: Standard
• Chirp: No
• Cable Length (Feet): 33'
• Box Dimensions: 4"H x 8"W x 11"L WT: 5 lbs
• UPC: 723193660867

🚨 Critical Performance Specifications:

• Package Quantity Configuration: Sold Individually (Includes 1 Marine Navigation Hardware Unit)
• Manufacturer Part Number (MPN): E66086
• Product Category Component: Marine Transducers
• Acoustic Sonar Frequency Range: High-Performance Wide Spectrum CHIRP Channeling
• Total Package Boxed Shipping Weight: 5.0 lbs
