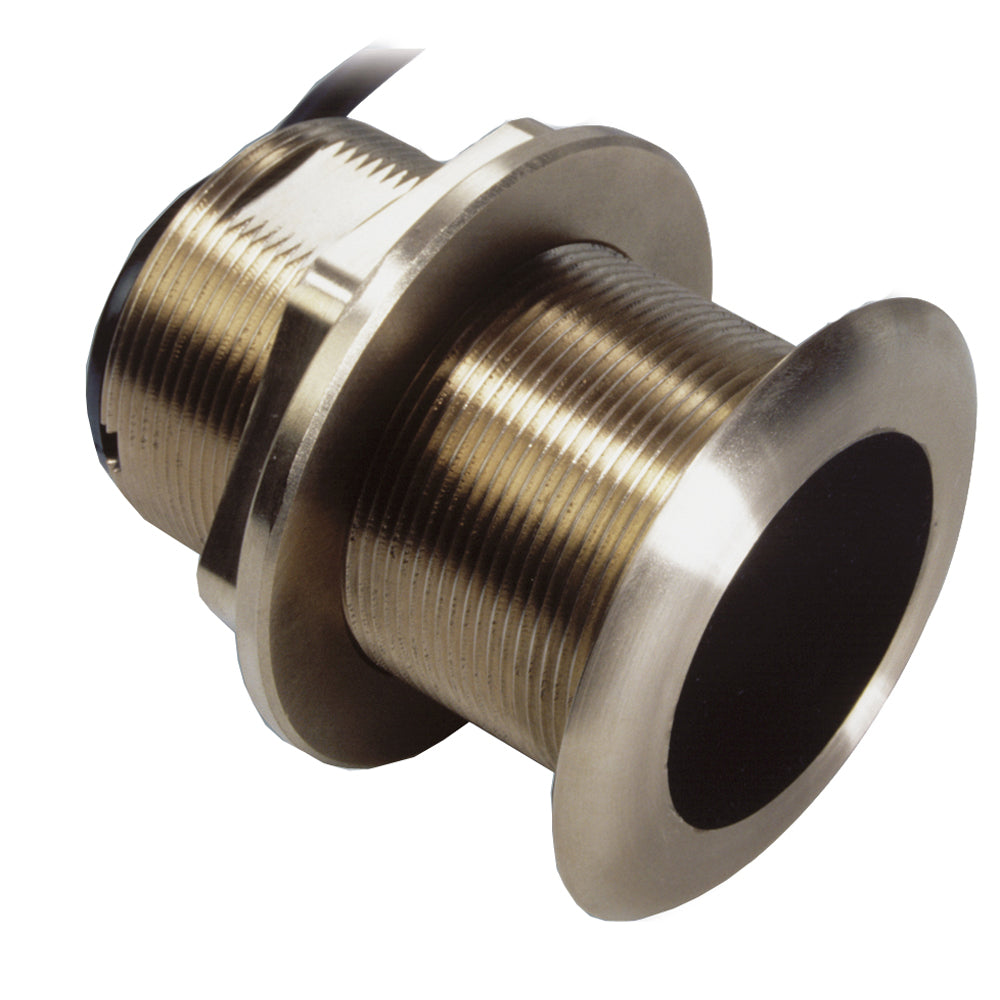

Raymarine B60-20, 20 Degree Tilted Element Transducer f/DSM300 / DSM300G / DSM25

Raymarine B60-20, 20 Degree Tilted Element Transducer f/DSM300 / DSM300G / DSM25

Unlock spectacular sub-surface depth soundings and monitor deep marine species tracking with the professional acoustic transducer elements of Raymarine. Precision-tuned to handle wide-spectrum CHIRP, DownVision™, and RealVision 3D outputs, these heavy-duty hull mounts provide clear target discrimination that auto-compensates for waves and engine vibration.

Product Overview & Core Highlights:

B60 Tilted Element™ 20°

20° titled version is designed for 16° - 24° deadrise angles

For use with Raymarine DSM250/DSM300/DSM300G/DSM30/CP300

The bronze B60-20° provide a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for more accurate depth readings. The nearly flush housing minimizes drag with only 5 mm (3/16") extending outside of the hull.

Features:

• Depth/Temp

• 50/200 kHz

• 600w RMS

• Mid-performance

• Bronze

Specifications:

• Chirp: No
• Cable Length (Feet): 33'
• Temperature: Yes
• Speed Included: No
• Mounting Style: Thru-Hull
• Imaging: Standard
• Box Dimensions: 3"H x 7"W x 7"L WT: 5.85 lbs

🚨 Critical Performance Specifications:

• Package Quantity Configuration: Sold Individually (Includes 1 Marine Navigation Hardware Unit)
• Manufacturer Part Number (MPN): E66085
• Product Category Component: Marine Transducers
• Acoustic Sonar Frequency Range: High-Performance Wide Spectrum CHIRP Channeling
• Total Package Boxed Shipping Weight: 5.8 lbs
