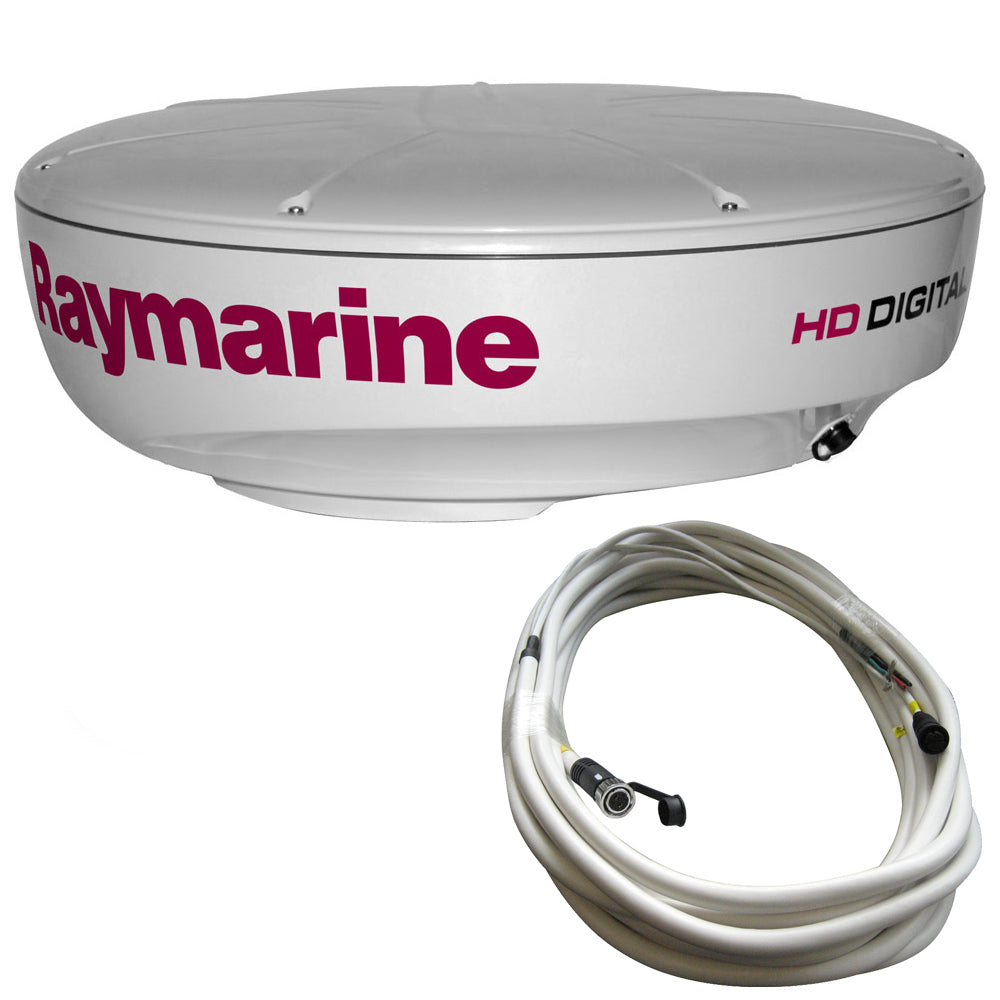

Raymarine RD424HD 4kW Digital Radar Dome w/10M Cable

Raymarine RD424HD 4kW Digital Radar Dome w/10M Cable

Scan wider coastal horizons and pierce through blinding fog or deep nighttime blackout darkness with the elite signal scanning power of Raymarine Marine Radar Systems. Built using advanced digital core compression topographies that render exceptional target separation and robust long-range tracking networks, these radar arrays identify adjacent watercraft, hidden shoals, and weather cells instantly.

Product Overview & Core Highlights:

RD424HD

Includes

• 10m Cable - A80228

• 24" HD Dome - E92143

Raymarine's HD Digital radome scanners combine the power and clarity of HD Digital signal processing with an ultra-compact scanner suitable for all types of vessels. Compatible with a,c & e Series Multifunction Displays, these radomes offer a 256-color radar display and the clearest, most lifelike radome presentation available from any radome scanner.

The RD424HD feature the same adaptive digital receiver technology found in our open array antennas. By adjusting automatically to changing environmental and sea conditions, the HD Digital radomes provide crisp, accurate contact echoes at short ranges, as well as outstanding long range performance up to 48 nautical miles.

RD424HD Features:

• Adaptive digital receiver automatically adjusts to changing environmental and see conditions for a dramatically clearer picture

• Fast digital receiver processor

• 256 color multi-level target display with selectable color palettes

• New Bird Mode automatically optimizes the receiver for detecting sea birds above schools of fish¹

• New High Speed Mode (48 RPM) automatically engages for optimal tracking of high speed targets at short ranges

• Dual-range mode allow you to monitor both long and short ranges simultaneously with a single scanner and display

  Specifications:

  • Array Size (Inches): 24"
  • Power - Output: 4kW
  • Range - Max (Miles): 48nm
  • Box Dimensions: 13"H x 29"W x 30"L WT: 33.8 lbs
  • UPC: 723193854099

🚨 Critical Performance Specifications:

• Package Quantity Configuration: Sold Individually (Includes 1 Marine Navigation Hardware Unit)
• Manufacturer Part Number (MPN): T70169
• Product Category Component: Marine Radar Systems
• Total Package Boxed Shipping Weight: 33.8 lbs
