Raymarine RV-400 Stainless Steel Thru-Hull RealVision 3D 0

Raymarine RV-400 Stainless Steel Thru-Hull RealVision 3D 0

Unlock spectacular sub-surface depth soundings and monitor deep marine species tracking with the professional acoustic transducer elements of Raymarine. Precision-tuned to handle wide-spectrum CHIRP, DownVision™, and RealVision 3D outputs, these heavy-duty hull mounts provide clear target discrimination that auto-compensates for waves and engine vibration.

Product Overview & Core Highlights:

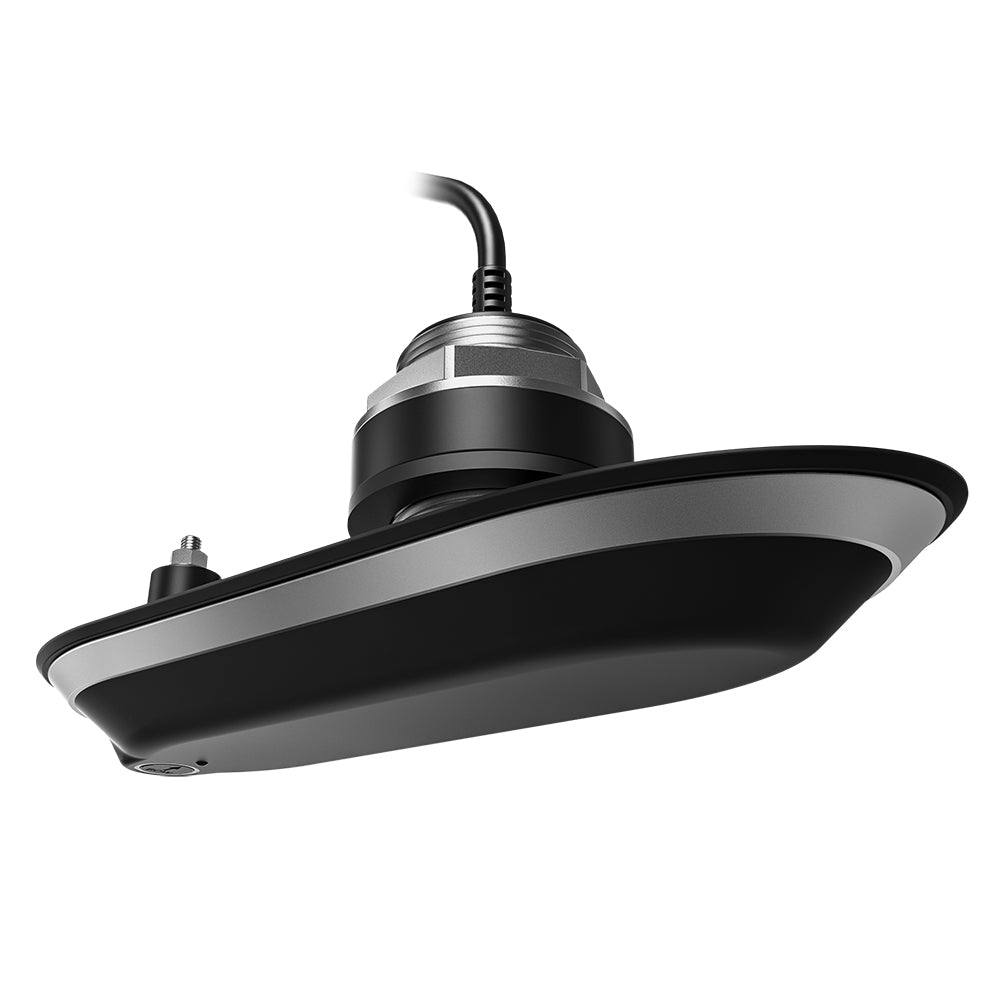

RV-400 Stainless Steel Thru-Hull RealVision 3D 0°

The RV-400 brings RealVision 3D, CHIRP DownVision, SideVision and High Frequency CHIRP sonar into a low-profile stainless-steel housing. The RV-400 features rugged stainless steel through hull bodies suitable for fiberglass, wood or metal hulls. Each transducer comes with an isolation kit that creates separation between the stainless-steel transducer body and any dissimilar metal hulls, eliminating risk of galvanic corrosion. Ideal for inboard and outboard powerboats, the RealVision 3D Stainless Steel transducers are available as a single transducer for flat hulls or a split pair with Y-cable to accommodate deadrise angles up to 26°. The transducers also have a built-in attitude and heading reference system (AHRS) that stabilizes the sonar imagery, compensating automatically for vessel motion. You’ll enjoy crystal-clear imagery even in waves, swells, and when maneuvering.

Specifications:

• Cable Length (Feet): 26'
• Imaging: Standard/Down/Side
• Speed Included: No
• Pins: 25
• Mounting Style: Thru-Hull
• Box Dimensions: 6"H x 14"W x 17"L WT: 10.55 lbs
• UPC: 723193828823

🚨 Critical Performance Specifications:

• Package Quantity Configuration: Sold Individually (Includes 1 Marine Navigation Hardware Unit)
• Manufacturer Part Number (MPN): A80615
• Product Category Component: Transducers
• Acoustic Sonar Frequency Range: RealVision 3D (350 kHz Spectrum CHIRP Channels)
• Total Package Boxed Shipping Weight: 10.6 lbs
