Raymarine RVM-100 Transom Mount Transducer

Raymarine RVM-100 Transom Mount Transducer

Unlock spectacular sub-surface depth soundings and monitor deep marine species tracking with the professional acoustic transducer elements of Raymarine. Precision-tuned to handle wide-spectrum CHIRP, DownVision™, and RealVision 3D outputs, these heavy-duty hull mounts provide clear target discrimination that auto-compensates for waves and engine vibration.

Product Overview & Core Highlights:

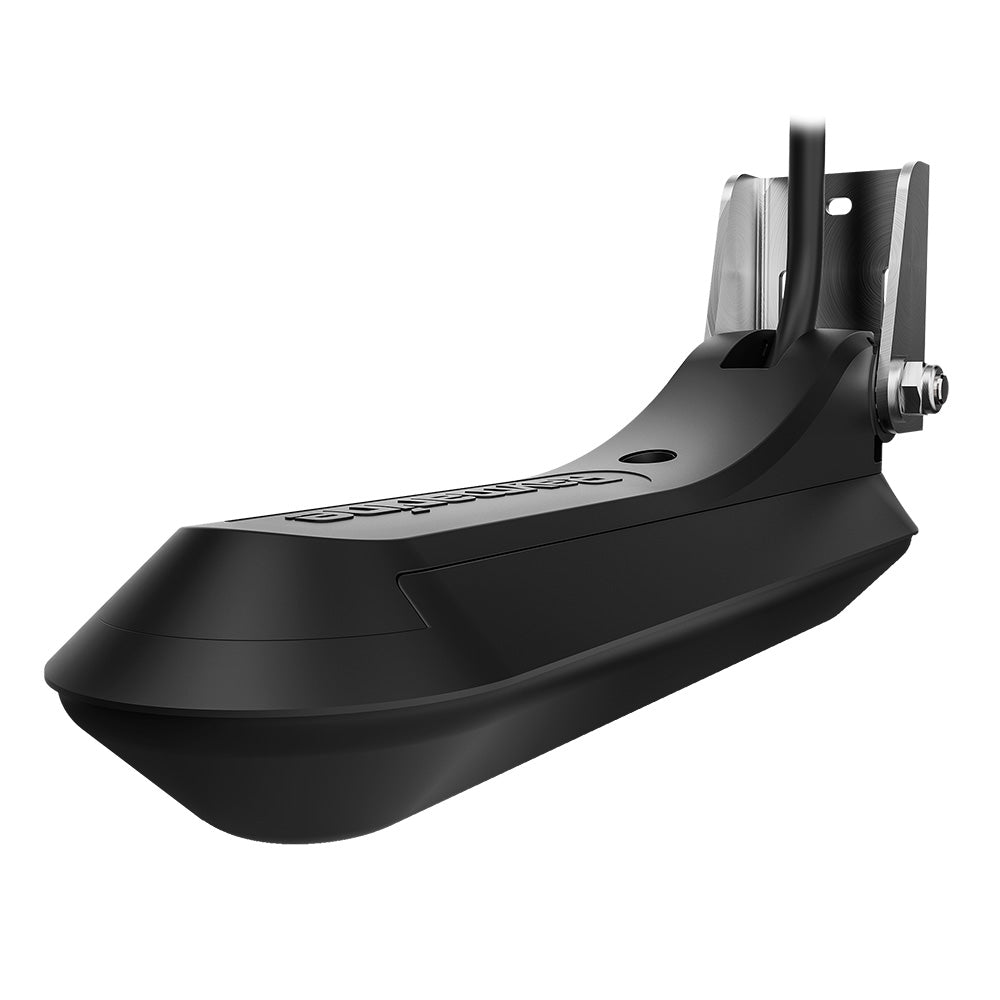

RVM-100 Transom Mount Transducer

RVM-100 all-in-one transom mount transducer is designed for Raymarine RealVision MAX compatible sonar modules, and RealVision MAX equipped chartplotters.  The RVM-100 lets you easily identify structures and locate fish with the life-like clarity of RealVision MAX technology. The RVM-100 is a 4-channel, Wide Spectrum CHIRP transducer with DownVision™, SideVision™, high-frequency CHIRP fish targeting, and 3D sonar inside. The transducer has a built-in attitude and heading reference system (AHRS) that stabilizes 3D sonar imagery, automatically compensating for vessel motion. You’ll enjoy an accurate and life-like model of the underwater environment that filters out distortions caused by waves, swells, or vessel maneuvering.  The RVM-100 also has a built-in fast-response water temperature sensor for quick, accurate readings.

The RVM-100 is designed for easy transom mounting on outboard-powered motor boats. It features a rugged, marine-grade stainless steel mounting bracket with an integrated kick-up to prevent damage in the event of a strike with floating debris, rocks, or stumps.

For bass boats, flats boats, and skiffs, an optional stainless Jack-Plate mounting bracket (A80480) and spacer kit (A80482) are available.

*Works with Axiom 2 Pro RVM series, and RVM1600 Sounder Module

Features:

• 600-Watt traditional CHIRP
• Designed for transom mounting on outboard boats
• Stainless Steel mounting bracket with an integrated kick-up feature
• 8M Cable

🚨 Critical Performance Specifications:

• Package Quantity Configuration: Sold Individually (Includes 1 Marine Navigation Hardware Unit)
• Manufacturer Part Number (MPN): A80703
• Product Category Component: Marine Transducers
• Acoustic Sonar Frequency Range: RealVision 3D (350 kHz Spectrum CHIRP Channels)
• Total Package Boxed Shipping Weight: 5.6 lbs
