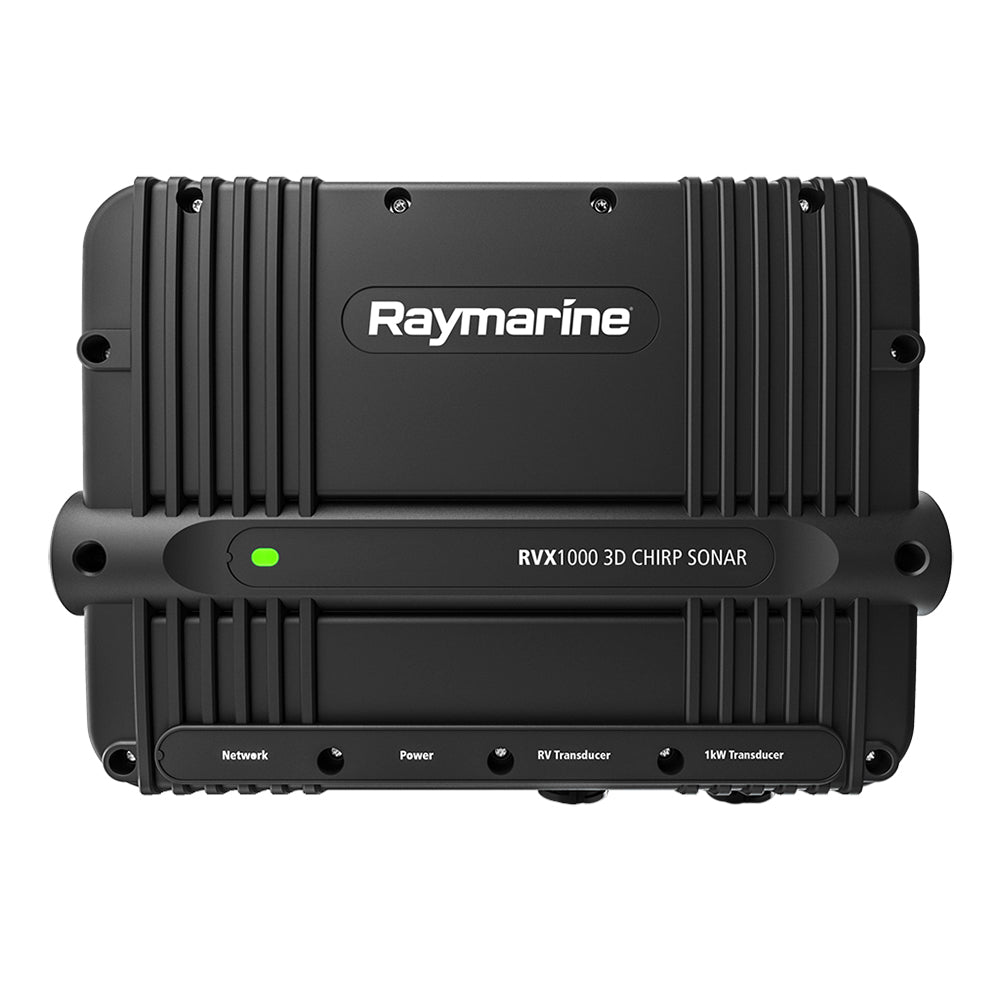

Raymarine RVX1000 3D Chirp Sonar Module [E70511]

Raymarine RVX1000 3D Chirp Sonar Module [E70511]

Raymarine

Regular price $1,749.99 USD
Regular price Sale price $1,749.99 USD
Sale Special Order this item by Clicking the Chat Button Below
Shipping calculated at checkout.

RVX1000 3D Sonar Module

The RVX1000 offers all of the sonar performance and features of Raymarine Axiom Pro in a remotely mounted black box sonar module. With Raymarine’s award winning RealVision 3D sonar technology, CHIRP Side and DownVision, plus a high powered 1kW dual channel CHIRP sonar, the RVX1000 is a versatile sonar solution for both inshore and offshore fishing.

Features:

  • 5-channel sonar with RealVision 3D, CHIRP Down and SideVision, high-frequency CHIRP and high-power 1kW CHIRP Sonar
  • RealVision 3D with GPS Track
  • Sonar Scroll Back – Rewind, pause, and playback recorded sonar history
  • Raymarine’s TrueZoom™ magnification technology
  • RealVision 3D gyro stabilization compensates for boat movement, delivering life-like 3D imagery
  • Dual transducer connections supporting both RealVision 3D and Airmar CHIRP 1kW transducers
  • Fast quad core processor delivers stunning 3D sonar imagery alongside CHIRP, DownVision and SideVision sonar channels without any lag or delay

Specifications:

  • Connections: 1x RVX Port = 25 pin RealVision connector | 1x 1kw Port = 11 pin 1kW connector | 1x Power connection | 1x Raynet connection
  • Sonar: SonarRealVision 3D (CHIRP Side and DownVision, High Frequency CHIRP, 3D Sonar) + 1kW High Power CHIRP
  • Sonar Depth: High Frequency CHIRP = 900 feet | DownVision = 600 feet | SideVision = 300 feet Port and Starboard | 1kw = 5,000 feet
  • Nominal Supply Voltage: 12 V and 24 V DC
  • Operating Voltage: Range10.8 V to 31.2 V DC
  • Power Consumption: 10.4 W (Maximum)
  • Current: 2.4 A Peak; 1.2 A RMS
  • Fuse/Breakers: 5amp
  • Waterproof Rating: IPX6/IPX7
  • Operating Temperature: -25 C (-13 F) to +55 C (+131 F)
  • Storage Temperature: -30 C (-22 F) to +70 C (+158 F)

The RVX1000 is compatible with all LightHouse 3 enabled Multifunction Displays running software version 3.4 or higher.

In the Box:

  • RVX1000 Sonar Module (1)
  • Power Cable, 1.5M (1)
  • Fixing Screws, #8 (4)
  • Documentation Pack (1)
  • RayNet Network Cable, 2M (1)
