Raymarine ST900/P120 Speed Temp Thru-Hull Transducer Retractable w/13.7M (45') C

Raymarine ST900/P120 Speed Temp Thru-Hull Transducer Retractable w/13.7M (45') C

Unlock spectacular sub-surface depth soundings and monitor deep marine species tracking with the professional acoustic transducer elements of Raymarine. Precision-tuned to handle wide-spectrum CHIRP, DownVision™, and RealVision 3D outputs, these heavy-duty hull mounts provide clear target discrimination that auto-compensates for waves and engine vibration.

Product Overview & Core Highlights:

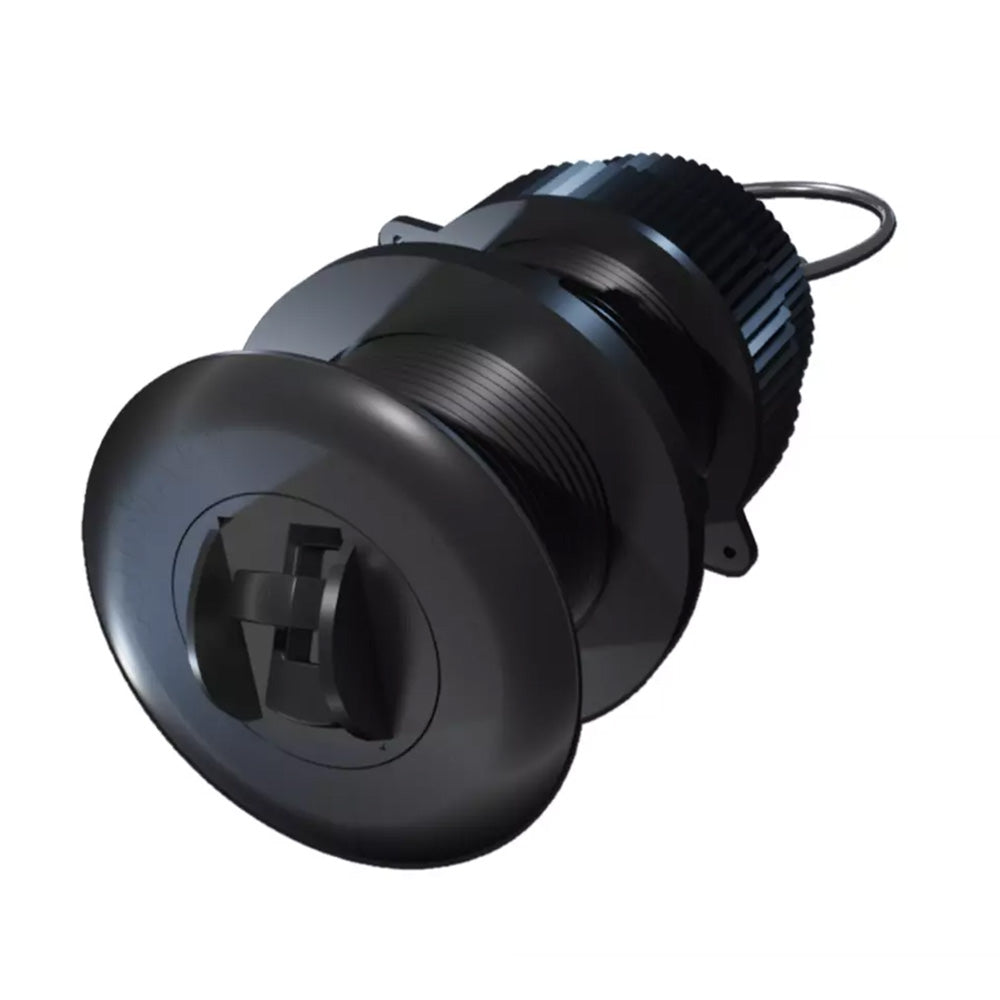

ST900/P120 Speed & Temp Thru-Hull Transducer Retractable with 13.7M (45') Cable

Speed performance has been taken to the next level with the ST900 Speed/Temperature sensor. Featuring the new Gen2 Paddlewheel, the ST900 outperforms all other paddlewheel sensors for responsive startup and linearity. The Gen2 Paddlewheel begins delivering accurate speed reporting as low as 0.3 knots and maintains smooth speed output through 45 knots.

Available with a plastic or bronze transducer housing, they sit nearly flush with the boat's hull and minimize drag with only 5mm (3/16") extending outside the hull. The housing has a valve assembly that helps to minimize water ingress in the bilge when the sensor is removed for routine maintenance of the paddlewheel.

Features:

• Speed and fast-response water temperature sensor
• Analog output for use with Raymarine instruments like i40, i50, iTC-5, and legacy systems
• Retractable for easy maintenance
• ST900 transducer core is retrofittable into existing Airmar P120 and B120 transducer housings

Specifications:

• Plastic
• Hull Material: Fiberglass/Metal
• Cable Length: 13.7M (45')
• Records: Speed/Temperature
• Hole Size: 51 mm (2")
• Mounting Style: Low Profile Thru-Hull
• Speed Range: 0.3 to 45 knots (.34 to 52 MPH/.55 to 83 KPH)
• Temperature Range: -10° to 40°C (14° to 104°F)

Specifications:

• Cable Length (Feet): 45'
• Mounting Style: Thru-Hull
• Speed Included: Yes
• Temperature: Yes
• Box Dimensions: 4"H x 6"W x 8"L WT: 2.15 lbs
• UPC: 723193846940

🚨 Critical Performance Specifications:

• Package Quantity Configuration: Sold Individually (Includes 1 Marine Navigation Hardware Unit)
• Manufacturer Part Number (MPN): E70673
• Product Category Component: Marine Transducers
• Total Package Boxed Shipping Weight: 2.1 lbs
