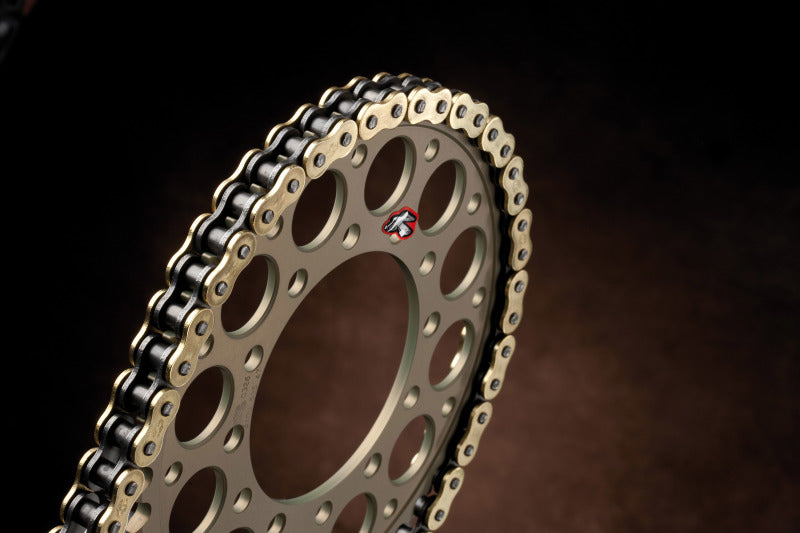

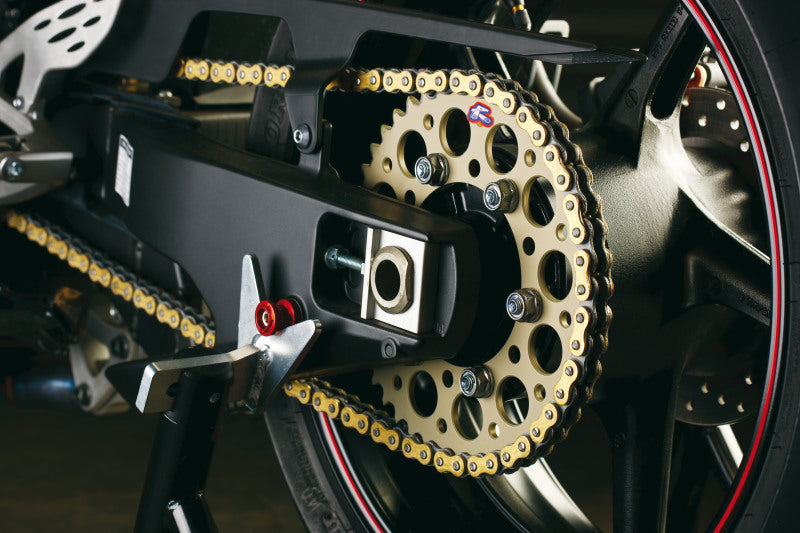

Renthal renC323 R4 520-110L SRS Road Chain

Renthal's R4 SRS Road chain is a specially developed sealed ring chain using Renthal's Self Regulating Seal (SRS) technology to increase the service life of the chain in road applications. The special SRS ring is pre-loaded during assembly creating a spring effect. As the chain wears, conventional O-rings and X-rings lose their seal; however, the SRS ring has the ability to unload itself during use keeping a tighter seal against the side plates. This offers increased longevity as the specially formulated grease remains trapped around the critical pin and bushing area longer while also keeping dirt, water and other contaminants out. SRS Ring technology enhances chain flexibility and offers smoother operation than standard O-ring chains. Larger diameter pins manufactured from specially enhanced alloy steel improve the resistance to shock loads and wear. Quad riveting process on each pin increases the tensile strength of the chain. Thicker inner- and outer-plates increase the fatigue life of the chain. Gold-anodized side plates help prevent corrosion.

The Renthal R4 SRS Road Chain is a sealed-ring chain developed for road applications. Its Self Regulating Seal (SRS) technology uses a pre-loaded seal that maintains tighter contact against the side plates as the chain wears, helping retain specially formulated grease around the critical pin and bushing area while keeping dirt, water and other contaminants out.

SRS Ring technology enhances chain flexibility and promotes smoother operation than standard O-ring chains. Larger-diameter pins made from specially enhanced alloy steel improve resistance to shock loads and wear, while the quad-riveting process on each pin increases tensile strength. Thicker inner and outer plates help extend fatigue life, and gold-anodized side plates help prevent corrosion.

Key Features & Performance Benefits

• Self Regulating Seal technology helps maintain a tighter seal as the chain wears.
• Sealed-ring construction helps retain grease and keep contaminants away from critical components.
• Enhanced alloy steel pins and quad riveting improve resistance to shock loads, wear and tensile stress.
• Flexible construction and gold-anodized side plates support smooth operation and corrosion prevention.

Key Product Specifications & Technical Data

• Brand: Renthal
• Part Number: renC323
• Product: R4 SRS Road Chain
• Chain Size: 520
• Link Count: 110L
• Seal Type: Self Regulating Seal (SRS)
• Application: Road
• Part Type: Powersports

What's Included in the Box

• One Renthal R4 520-110L SRS Road Chain

Fitment

Specific vehicle fitment data was not provided.

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Unknown
Part Type: powersports
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: false
Units Per Sku: 1
