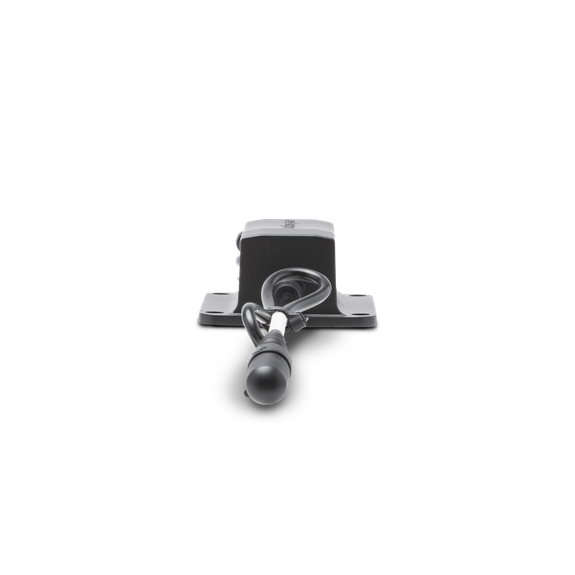

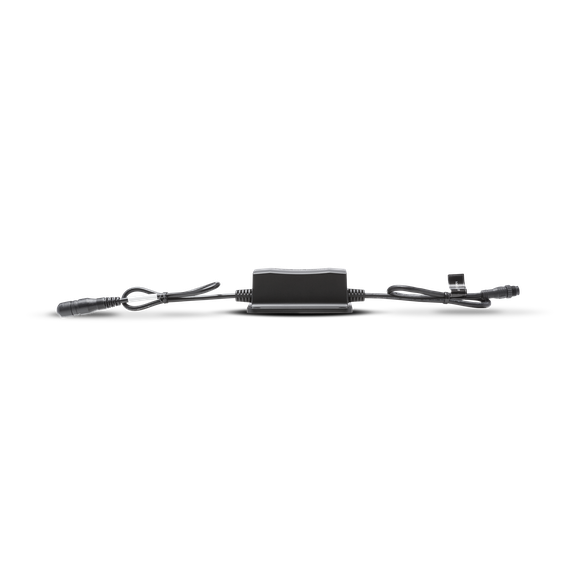

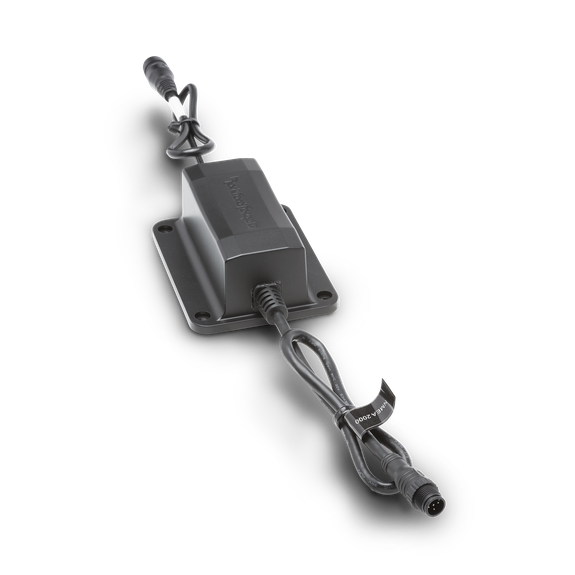

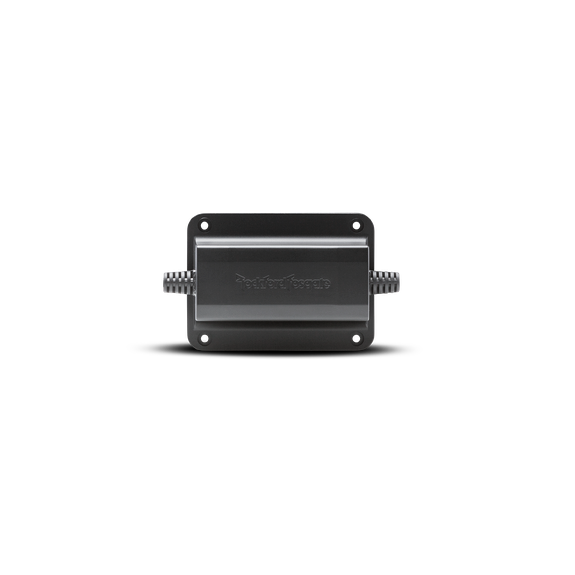

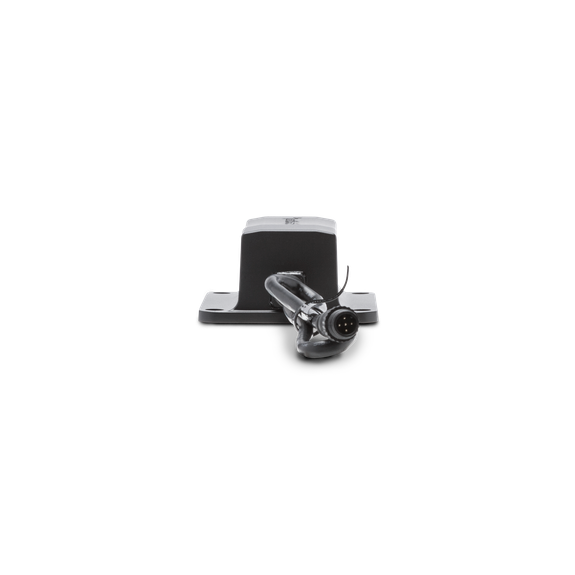

Rockford Fosgate CANbus Multi-Function Display Interface Module - PMX-CAN
Rockford Fosgate CANbus Multi-Function Display Interface Module - PMX-CAN
Rockford Fosgate - PMX-CAN
Couldn't load pickup availability
Rockford Fosgate CANbus Multi-Function Display Interface Module - PMX-CAN
Complete your ultimate high-fidelity mobile system build and lock down full electrical current distribution with professional connection integration components from Rockford Fosgate. Combining high-conductivity copper conductor strands with heavy weatherized insulation layouts, these elements protect your circuitry pathways, guaranteeing seamless long-term power and data delivery.
Product Overview & Core Highlights:
Rockford Fosgate PMX-CAN CANbus Multi-Function Display Interface Module
The PMX-CAN interface allows interconnection between a PMX-8BB marine source unit and a Multi-Function Display (MFD) system using the NMEA2K entertainment standard. This interface allows you to control basic functions of the source unit directly from select MFD (Multi-Function Display) partners such as play, pause, track up/ down and source change as well as more advance functions and source-specific options.
Larger marine entertainment systems are often centered around a multi-function display (MFD) unit using software configured using the NMEA2K standards. To better interface our PMX series of source units to these systems we have created the PMX-CAN interface module.
This module features a plug and play design allowing connectivity to our PMX-8BB hideaway digital receiver unit and these select MFD systems. The PMX-CAN translates commands from the MFD system into something the PMX-8BB understands allowing you to control the unit remotely while getting direct informational feedback regarding your audio selection and source.
The interface allows control of both basic and advanced radio functions such as power, volume and source selection as well as source-specific functions for the radio, Bluetooth, Pandora, SiriusXM and USB inputs. This allows you to make changes and adjustment to the audio system without having to go the source unit itself.
FEATURES AT A GLANCE
- Power On/Off control
- Play/Pause, Track/Tune/Seek Up/Down Function
- Zone Source Selection/Renaming Capability
- Master/Subwoofer/Zone Volume Control
- Input Source Selection
- Balance/Fade, EQ Preset Adjust, Filter Freq. Adjustment
- Compatible with a Multi-Function Display using NMEA2K entertainment standard. See our MFD Compatibility Chart
- 2-Year Warranty
🚨 Critical Performance Specifications:
- Package Quantity Configuration: Sold Individually (Includes 1 High-Performance Component Unit)
- Manufacturer Part Number (MPN): PMX-CAN
- Product Category Component: Stereos
- Total Package Boxed Shipping Weight: 0.5 lbs
