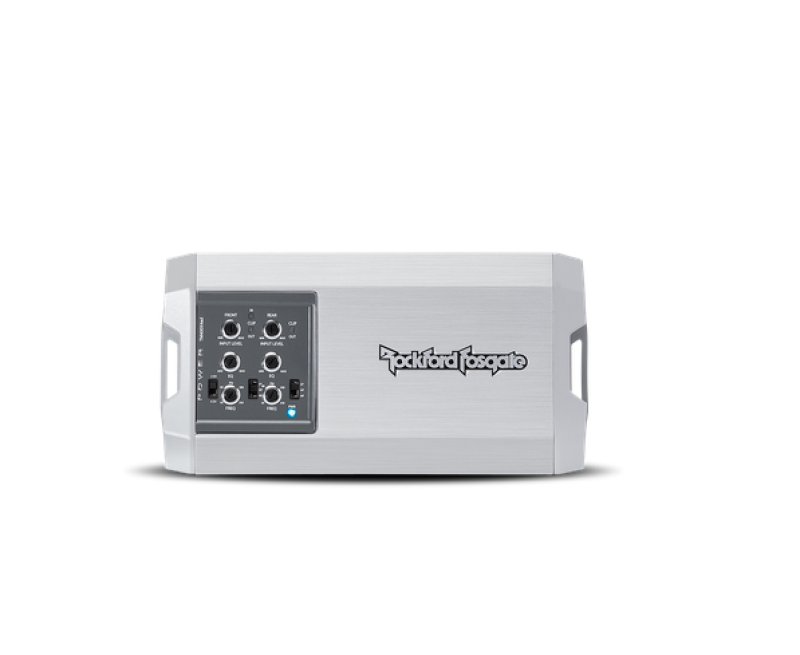

Rockford Fosgate Power 400 Watt Class-ad 4-Channel Element Ready Marine Amplifie
Rockford Fosgate Power 400 Watt Class-ad 4-Channel Element Ready Marine Amplifie
Rockford Fosgate - rocTM400X4AD
Couldn't load pickup availability
Rockford Fosgate Power 400 Watt Class-ad 4-Channel Element Ready Marine Amplifie
Fuel your soundstage grid with raw electrical muscle and master your acoustic layout with the street-proven engineering of Rockford Fosgate power amplifiers. Renowned globally for continuous current regulation, advanced thermal heat dissipation casing networks, and signature clean signal tracking circuits, these amplifiers deliver massive output headroom with absolute zero distortion thresholds.
Product Overview & Core Highlights:
The Power TM400X4ad 400 Watt 4-channel ultra-compact, amplifier is built on Rockford Fosgate’s proprietary Class-AD technology, featuring Constant Power to produce the same output at both 4-Ohm and 2-Ohm impedances. Flexible vehicle integration enabled through low-level and high-level inputs with auto turn-on. Top mounted controls allow easy access to built-in crossover and C.L.E.A.N. input/output clip detection circuits. The 3-stage thermal lock extrusion with dual fan forced induction keeps everything cool while real-time thermal/protection schemes safeguard the amplifier.
FEATURES AT A GLANCE
- Rockford Fosgate proprietary Class AD technology
- 8 AWG power/ground connector w/ upgraded RCA connectors
- Differential inputs with high level auto turn-on feature
- Remote-Out feature when using high level inputs
- 4/2 Ohm muti-impedance Constant Power
- 2/4 channel input switch
- Top mounted controls
- C.L.E.A.N. input/output clip detection and indicator LEDs
- 4 Ohm bridged capable
- Dual fan cooled
- Real time thermal sensing
- Dual extruded heat sinks
- Discrete surface mount technology
- Marine grade two part epoxy coating on circuit boards
- 2-Year Warranty
Protect: Red LED
Input Clip: Red LED3
Output Clip: Blue/Violet/Red LED1,2,3
LED Color Legend:
1BLUE: <0.5% THD
2VIOLET: 1% THD
3RED: 10%+ THD
Replacement 1040-57997

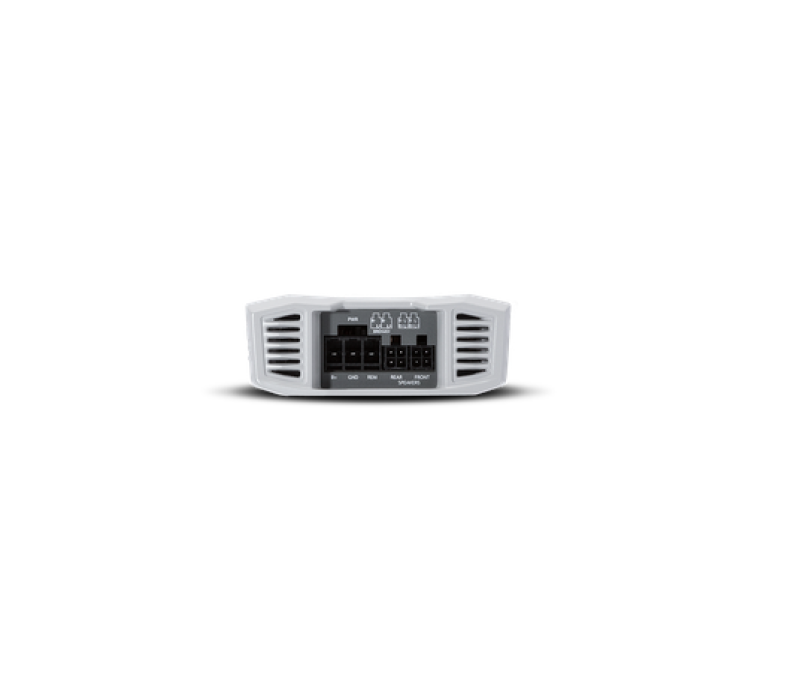

Rear: 4-Pin Harness
4.1 x 10.8 x 21.1 (cm)
🚨 Critical Performance Specifications:
- Package Quantity Configuration: Sold Individually (Includes 1 High-Performance Component Unit)
- Manufacturer Part Number (MPN): rocTM400X4AD
- Product Category Component: Amplifiers
- Total Package Boxed Shipping Weight: 3.4 lbs
