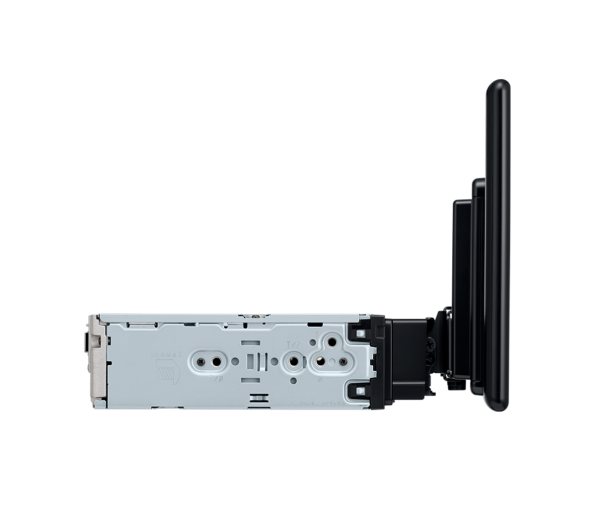

Sony XAV-9500ES Mobile ES™ 10.1'' (25.6 cm) Wireless CarPlay/ Android Auto Media Receiver
Sony XAV-9500ES Mobile ES™ 10.1'' (25.6 cm) Wireless CarPlay/ Android Auto Media Receiver
Sony ES - XAV9500ES
Couldn't load pickup availability
Sony XAV-9500ES Mobile ES™ 10.1'' (25.6 cm) Wireless CarPlay/ Android Auto Media Receiver
- Large, 10.1" HD (1280 x 720) capacitive touchscreen
- LDAC™ allows wireless streaming of High-Resolution Audio with exceptional quality
- Single-DIN chassis gives more installation options
- Native 192 kHz / 24-bt WAV, FLAC, ALAC audio playback, and DSD file playback via 192 kHz / 24-bit PCM conversion
- USB Type-C® for compatible smartphones
What's In The Box
In the Box
External Microphone Power Supply Leads Connection Cables(Audio/Camera) USB Extension Cable(Type-C) GPS Antenna Warranty Card
USB Mass Storage Device Control Feature
USB Device Control (Audio Codec)
MP3/WMA/WAV/AAC/FLAC/ALAC/DSF/DSDIFF
USB Device Control (Pause)
Yes
USB Device Control (Repeat)
TRACK/FOLDER/DRIVE
USB Device Control (Resume Play)
Yes
USB Device Control (Shuffle)
OFF/FOLDER/DEVICE
USB Device Control (Video Codec)
ASF/WMV/AVI/MKV/MPEG-4
USB device control (audio playable file extension)
.mp3/.wma/.wav/.m4a/.mp4/.flac/.m4a/.dsf/.dff
USB device control (video playable file extension)
.asf/.wmv/.avi/.mkv/.mp4
User Interface
Parking Control
Yes
Rear View Camera-In Marker Setting
Yes
Touch Panel
Yes/Capacitive
Parking Line Adjust
Yes
Display Panel
Dimmer Adjust
Yes
Key Illumination
On Front Panel (White)
Key Illumination Initial
On Front Panel (White)
Monitor(AVC)
Brightness
425 cd/m2
Contrast Ratio
1000
Dimmer
Auto/Manual select
LCD Type
TFT Active Matrix
Resolution (DOT)
1280 x 720
Screen Aspect
16 : 9
Screen Diagonal (inch / mm)
10.1 inch / 257 mm
Screen Size (W x H mm)
223.7 x 125.8 (mm)
Screen Diagonal (inch / mm)
10.1 inch / 257 mm
Screen Size (W x H mm)
223.7 x 125.8 (mm)
Panel Design
Key Illumination
Yes on Front Panel (White)
Panel Detachability
Yes (For installation only)
Bluetooth Audio Features
Audio Level Adjustment
Yes (-6dB to +6dB)
Cue / Rev
Yes
Pause (Bluetooth Audio)
Yes
Track +/-
Yes
Audio Codec (Bluetooth Audio)
SBC/AAC/LDAC
Group (Folder) +/-
Yes
Meta Data Indication
Yes
Repeat Control (Audio Device side)
Yes
Shuffle Control (Audio Device side)
Yes
Bluetooth Features
External Microphone
Supplied
Alphabetical Phonebook Sorting
Yes
Call Volume Level Control
Yes
Last Dialed Call
Yes(select from the dialed call history)
Phone Battery Level Reminder
Yes
Phonebook Access via PBAP
Yes
Recent Calls (# of)
Yes
Ring Volume Level Control
Yes
Signal Strength Indication
Yes
Speed Dial
Yes (6 memories)
Battery Reminder
Yes
Bluetooth Profile
A2DP
Yes (1.3.1)
AVRCP
Yes (1.6.1)
HFP 1.5
Yes (1.7.1)
PBAP
Yes (1.1)
HFP
Yes (1.7.1)
Tuner Features
Preset
FM18/AM12
RDS / EON
Yes (RBDS)
Auto Memory
BTM
Size & Weight
Dimensions (W x H x D)
10.67 x 6.73 x 9.72"
Weight
6.17 lb
General Features
Pre Out
5V 3 Pre (Front LR / Rear LR / Sub LR)
USB
Yes (Type-C x 1, REAR)
Equalizer
14-band Equalizer and 8-band Parametric Equalizer
Firmware upgradability
Yes
Output Power
55W x4
Rear View Camera in
Rear/Input 1/Input 2
Time Alignment
Yes
Album artwork Indication
Yes
Apple CarPlay
Yes
Android Auto
Yes
Weblink
No
