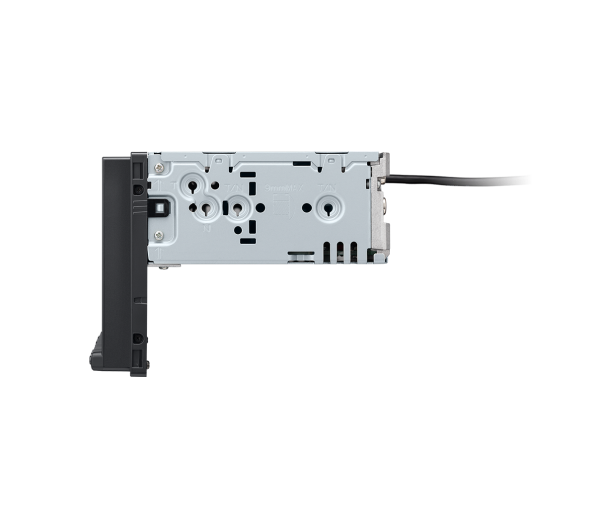

Sony XAV-AX3200 6.95" (17.6 cm) CarPlay/ Android Auto Media Receiver
Sony XAV-AX3200 6.95" (17.6 cm) CarPlay/ Android Auto Media Receiver
Sony
Couldn't load pickup availability
- Mirror and control selected smartphone apps with WebLink Cast
- Anti-glare touchscreen with quick boot
- EXTRA BASS™ adds low-end power
- A/V input for an external audio and visual source device
- Rear-view camera ready for safe reversing
Accessory
Fitting Frame
No
Collar
No
Warranty card
Yes (NA for 1 year)
ISO connector
No
MRP Sticker for 'IN' version(India)
No
Maruti-CDO Stickers (MGA/Packing List/PartsNo.)
No
Maruti Connector Cable
No
Remote Commander Remote Control
RM-170
Steering Remote Control cable
RC-SR1
Bluetooth microphone
Yes (Wired)
General
Preout output level(V)
2Vrms
Maximum output power (4ohms_ 1kHz_ 16V)(W)
55W
CTA2006 output power
20W
CTA2006 S/N
80dBA
Speaker impedance(ohms)
4-8Ω
Connector Type
16P
ANT connector
JASO
Dimensions (WxHxD)(mm)
178 x 100 x 139
Mounting dimensions (WxHxD)(mm)
182 x 111 x 120
Weight(kg)
1.0
USB Mass Strage Device Control Feature
Shuffle
OFF/FOLDER/DEVICE
Pause
Yes
Resume Play
Yes
Plug and Play
No
Audio Codec
PCM/MP3/WMA/AAC/FLAC
Audio Playable File Extension
wav/.mp3/.wma/.m4a/.flac
Video Codec
MPEG4-SP/AVC(H.264 Baseline)/WMV/MKV/XviD
Video Playable File Extension
.mp4/.wmv/.mkv
MTP
No
FM(Tuning range(MHz)/step(kHz)/de-emphasis(mus))65-74/30/50(or75)_87.5-108/50/50
No
USB Capability
USB Media Transfer Protocol
No
USB Hub
No
File System
exFAT, FAT12/16/32
connection-enabled device list
WEB Support
Repeat
TRACK/FOLDER/DRIVE
USB Specification
USB Mass Strage Device
Yes
Multi Language
Caution
English/Spanish/French/German/Italian/Russian/Portuguese/Thai/Simplified Chinese/Traditional Chinese/Korean/Arabic/Indonesian
Menu/Caution Initial
English
ID3 Tag
English/Spanish/French/German/Italian/Russian/Portuguese/Thai/Simplified Chinese/Traditional Chinese/Korean/Arabic/Indonesian
Source List
Yes
Display Panel(MDP and AVC)
Dimmer Area
Display Monitor and Key
Monitor off mode
Yes
Menu
English/Spanish/French/German/Italian/Russian/Portuguese/Thai/Simplified Chinese/Traditional Chinese/Korean/Arabic/Indonesian
Other Features
Device Name
XAV-AX3200
Bluetooth Audio Feature
Audio Codec
SBC / AAC
Pause
Yes
CUE/REV
Yes
Track +/-
Yes
Group (Folder) +/-
Yes
Audio Level Adjustment
Yes (-6dB to +6dB)
Audio Level Adjustment initial
0dB
Repeat Control (Audio Device side)
Yes
Shuffle Control (Audio Device side)
Yes
Meta Data Indication
Yes
Bluetooth Feature
Recent calls (No.of)
Yes
Phonebook(Built in)
No
phonebook code
UTF8
Phonebook Access via PBAP
Yes
Alphabetical Phonebook Sorting (Built-in)
No
Alphabetical Phonebook Sorting (PBAP)
Yes
Phone data password lock
No
Connection status (maximum No.)
[1HFP/PBAP+1Audio]
Display for connecting list
No
Any Key Answer
No
Auto Answer
No
RF ON/OFF
Yes
DTMF
No
internal ringtone
1 (2016 Sony Mobile Ringtone)
noise canceller
Yes
echo canceller
Yes
Ring alert select
No
Ring Volume Level Control
Yes
Call Volume Level Control
Yes
Mic Gain Adjustment
Low/Mid/High
TEL out channel
Front / Rear / All
Voice Dial Activation
No
Built-in Microphone
No
External Microphone
Supplied
Battery remainder indication
Yes
Signal Strength Indication
Yes
Speed Dial
Yes (6 memories)
Last Dialed Call
Yes (select from the dialed call history)
Profile
HFP
Yes (1.6)
HSP
No
A2DP
Yes (1.3)
OPP
No
DUN
No
SPP
No
AVRCP
Yes (1.3)
AVRCP(MTE)
No
PBAP
Yes (1.1)
SAP
No
VDP
No
BIP
No
BT Spec.
Version
Bluetooth Version 3.0
EDR
-
USB Control Feature
List
Yes
Repeat
Yes
Repeat Initial
All
Shuffle
Yes
Shuffle initial
Off
Pause
Yes
ID3 Tag Indication (Version_ Title/Artist/Album)
Yes
CUE/REV
Yes (Video: lock search)
Max LayerNo./FolderNo./FileNo.
8/1000/20000
MP3 playback
Yes
WMA playback
Yes
AAC playback
Yes
WAV playback
Yes
JPEG playback
No
MPEG-4 playback
Yes
H.264 playback
Yes
Divx playback
No
Xvid playback
Yes
PICTURE EQ
Yes
Tuner Feature
Preset
FM18/AM12
Auto Memory
BTM
FM 50k/100k/200k change
No
AM 9k/10k change
No
RDS/EON
Yes (RBDS)
AF
No
TA
No
General Feature
DVD/CD Playback
No
Sub Woofer Out initial
Normal
Sub Woofer adjust
Yes
Sub Woofer adjust initial
0dB
Sub Woofer Phase
Yes (Normal/Reverse)
Balance initial
Center
Fader initial
Center
High Pass Filter initial
OFF
Low Pass Filter initial
100Hz
ATT initial
OFF
DVD LEVEL Adjust initial
No
Zone x Zone
No
PICTURE EQ initial
Dynamic
Aspect Ratio Initial
Full
USB High Charge
Yes / 1.5A
Firmware upgradability
Yes
Tag Indication
Yes (Except Flac and WAV)
HD Radio embedded
No
Smartphone Linkage
Apple CarPlay
Yes
Android Auto
Yes
Weblink
Yes (WebLink CAST)
Voice Command (Smartphone Function) Activate
Yes (Only CPAA)
Expandability
Pre Out
3 Pre (Front / Rear / Sub x 1)
High Voltage Pre Out
No
AUX input (Stereo Mini-Jack)
No
AUX/Video input (RCA)
Yes (Mini-Jack)
Rear View Camera Input
Yes
Video out
No
USB
Yes (Rear x1)
Bluetooth
Yes
Extension Connector
No
Sirius XM Ready
Yes
DAB
No
Sound
Output Power
55W
EXTRA BASS
Yes (Off/1/2)
Graphic Equalizer
10Band Graphic Equalizer
DSO
Yes
Time Alignment
No
Display
Screen Size (Inch / mm)
6.95inch / 176 mm
Touch Panel
Resistive + AG
Product Basic Info
Model Code
XAV-AX3200
Spec
UC
User Interface
Aspect Ratio Select
Yes
Parking Control
Yes
Rear View Camera-In Marker Setting
Yes
Clock
12H
Rotary commander ( )-Option
No
Remote Commander ( )-Option
RM-X170
Wallpaper Initial
Blue
Wallpaper custormization
Yes
List Function
Yes
Demo Mode
Yes
Version
USB2.0 (High speed)
Monitor(AVC)
Brightness
800 cd/m2
Contrast Ratio
600
Dimmer
Yes
LCD Type
TFT Active Matrix
Screen Aspect
16:9
Resolution(DOT)
800 × 480
Dimmer Method
Auto/Manual select
Screen Mode
Yes: TYpe1 to 4
Color System
NTSC/PAL
Color System Auto switch
Yes
Viewing Angle (Contrast Ratio 10-1)
70/70/60/65 (L/R/U/D)
Response Time (black to white/white to black)
Tr+Tf= 30 mS
Dimmer Adjust
Yes
Screen Diagonal(inch/mm)
6.95inch / 176 mm
Screen Size(WxH mm)
156.6 x 81.6 (mm)
Tuner
FM(Tuning range(MHz)/step(kHz)/de-emphasis(mus)) 87.5-108/50/50
No
FM(Tuning range(MHz)/step(kHz)/de-emphasis(mus)) 87.5-107.9/200/75
Yes
FM(Tuning range(MHz)/step(kHz)/de-emphasis(mus)) 87.5-107.9/100/75
No
MW(Tuning range(kHz)/step(kHz)) 531-1602/9
No
MW(Tuning range(kHz)/step(kHz)) 530-1710/10
Yes
LW(Tuning range(kHz)/step(kHz)) 153-279/seek 9 manual 1
No
SW(Tuning range(kHz)/step(kHz)) 5950-6205/5
No
FM-Tuning range(MHz)
87.5-107.9
MW-Tuning range(kHz)
530-1710
LW-Tuning range(kHz)
No
Accessibility
Closed Caption / TTS: No support
Panel Design
Key Illumination
Yes (White)
Panel Detachability
No
Panel Surface Finish Color
Black
General Features
Lithium Battery
Yes
