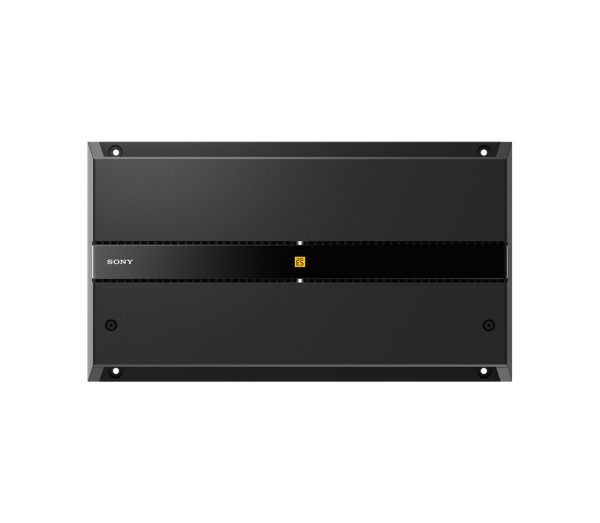

Sony XM5ES Mobile ES™ 5-channel Power Amplifier

Sony XM5ES Mobile ES™ 5-channel Power Amplifier

Sony ES - XM5ES

$998.00 USD
$1,197.60 USD $998.00 USD
Sale Special Order this item by Clicking the Chat Button Below
Shipping calculated at checkout.

Sony XM5ES Mobile ES™ 5-channel Power Amplifier

  • 100 W x 4 (330 W x 2 bridged) and 450 W x 1 RMS output power at 4 ohms
  • 165 W x 4 and 750 W x 1 RMS output power at 2 ohms
  • High-Resolution Audio compatible
  • Signal summing for seamless connection to factory audio and combined pre-outs

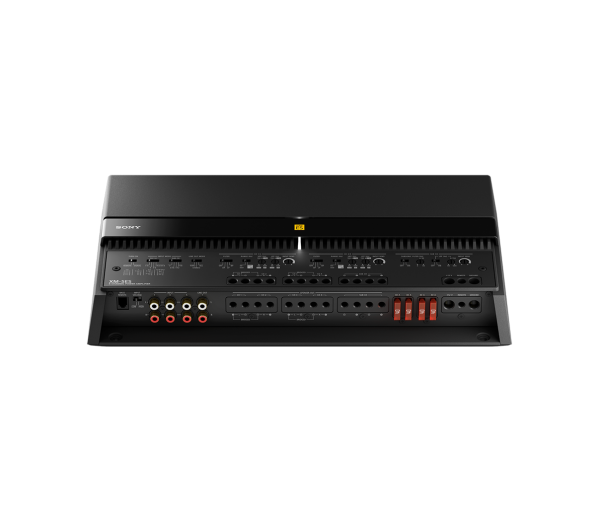

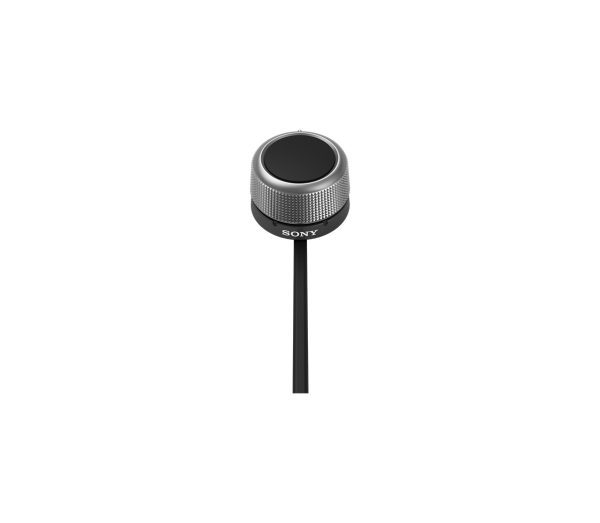

  • Updated connection terminal/control panel design, and supplied bass remote

Rated Output Power (14.4 V)

2 ohms

165 W x4 + 750 W x1 at 1 kHz, 1% THD

4 ohms

100 W x4 + 450 W x1 at 1 kHz, 1% THD

4 ohms — BTL (Bridge-Tied Load)

330 W x2 BTL+ 450 W x1 at 1 kHz, 1% THD

CTA Rated Output Power

4 ohms

100 W x4, 450 W x1

Size & Weight

Dimensions (W x H x D)

14.96" x 2.36" x 8.46"

General Features

Frequency Response

10 Hz–40 kHz / 10–500 Hz

Tolerance

+0.5/-3 dB

Total Harmonic Distortion at 1 kHz (%)

Less than 0.05%

Details

Gold Plated Connectors

Yes

MOSFET

Yes (Power Supply)

Speaker Level Input

Yes

Subsonic High Pass Filter

Yes

CTA Power output

100 W x4 + 450 W x1

Amplifier

Channel Configuration

4-ch/3-ch/2-ch/1-ch (Mono)

Low Pass Filter

Variable (50–500 Hz)

Low-Pass Filter Slope

12 dB/oct + 24 dB/oct

High Pass Filter

Variable (500–5 kHz)

High Pass Filter Slope

12 dB/oct

CTA S/N

77dB

Signal to Noise Ratio

100dB
