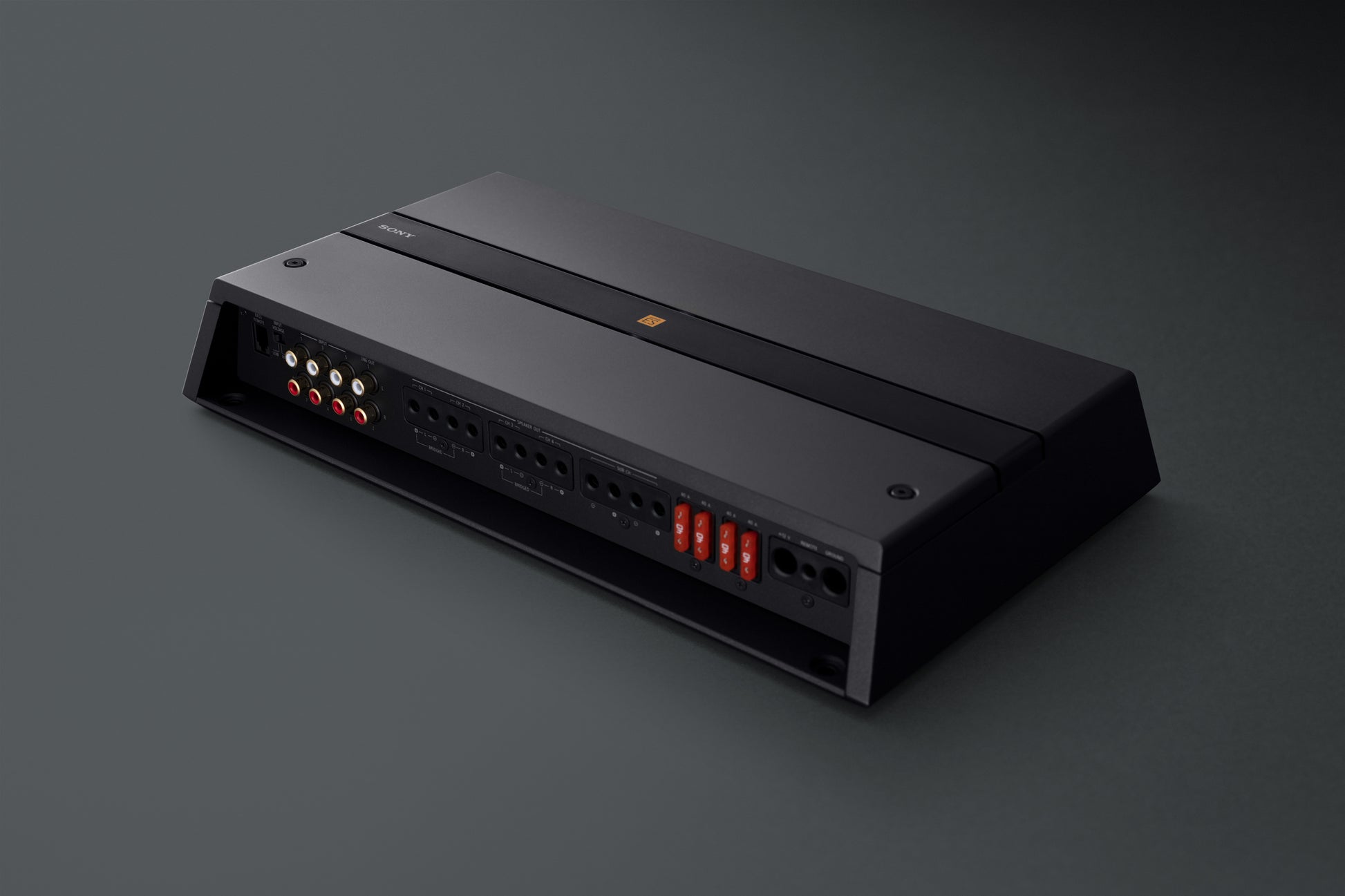

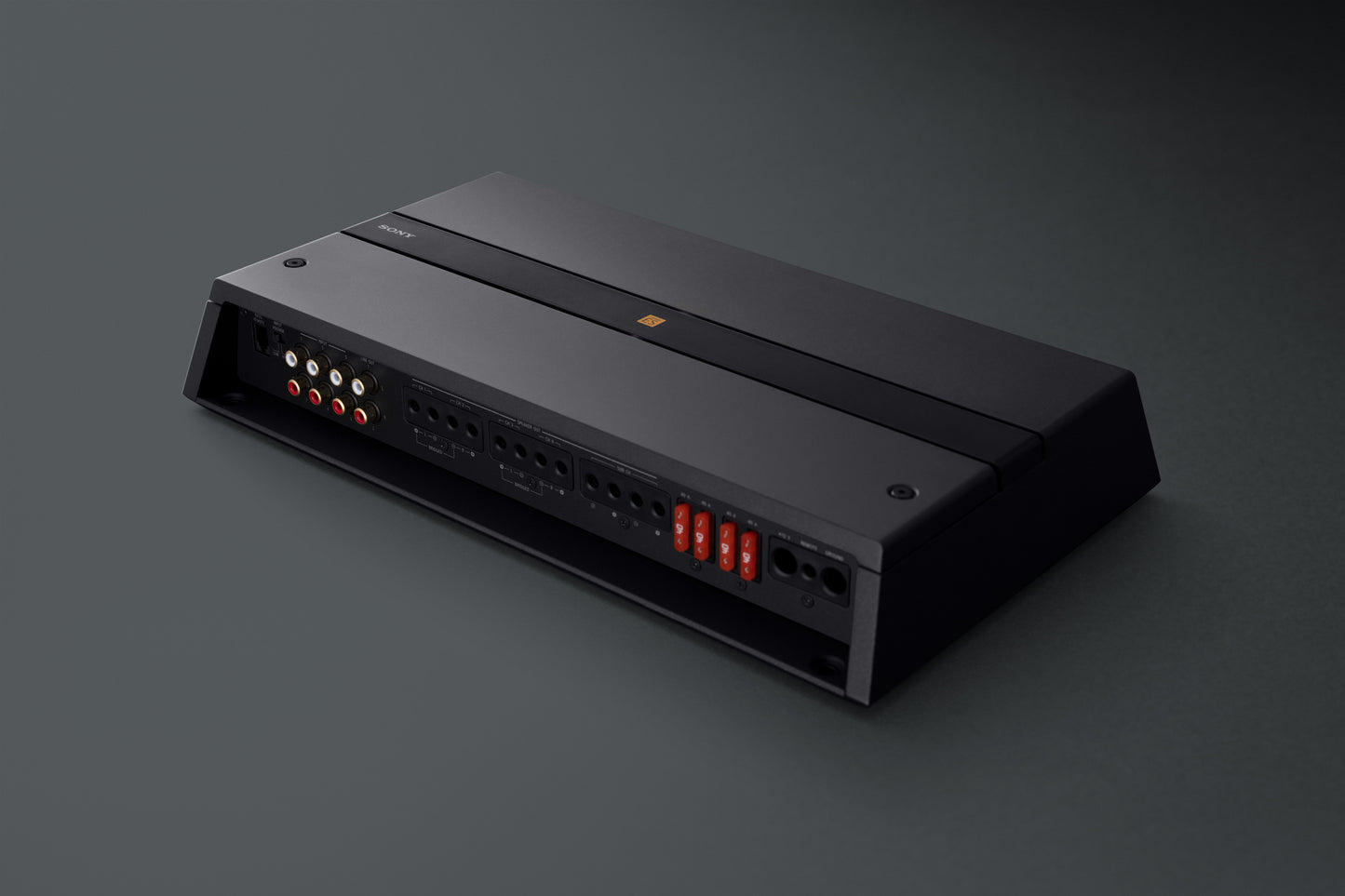

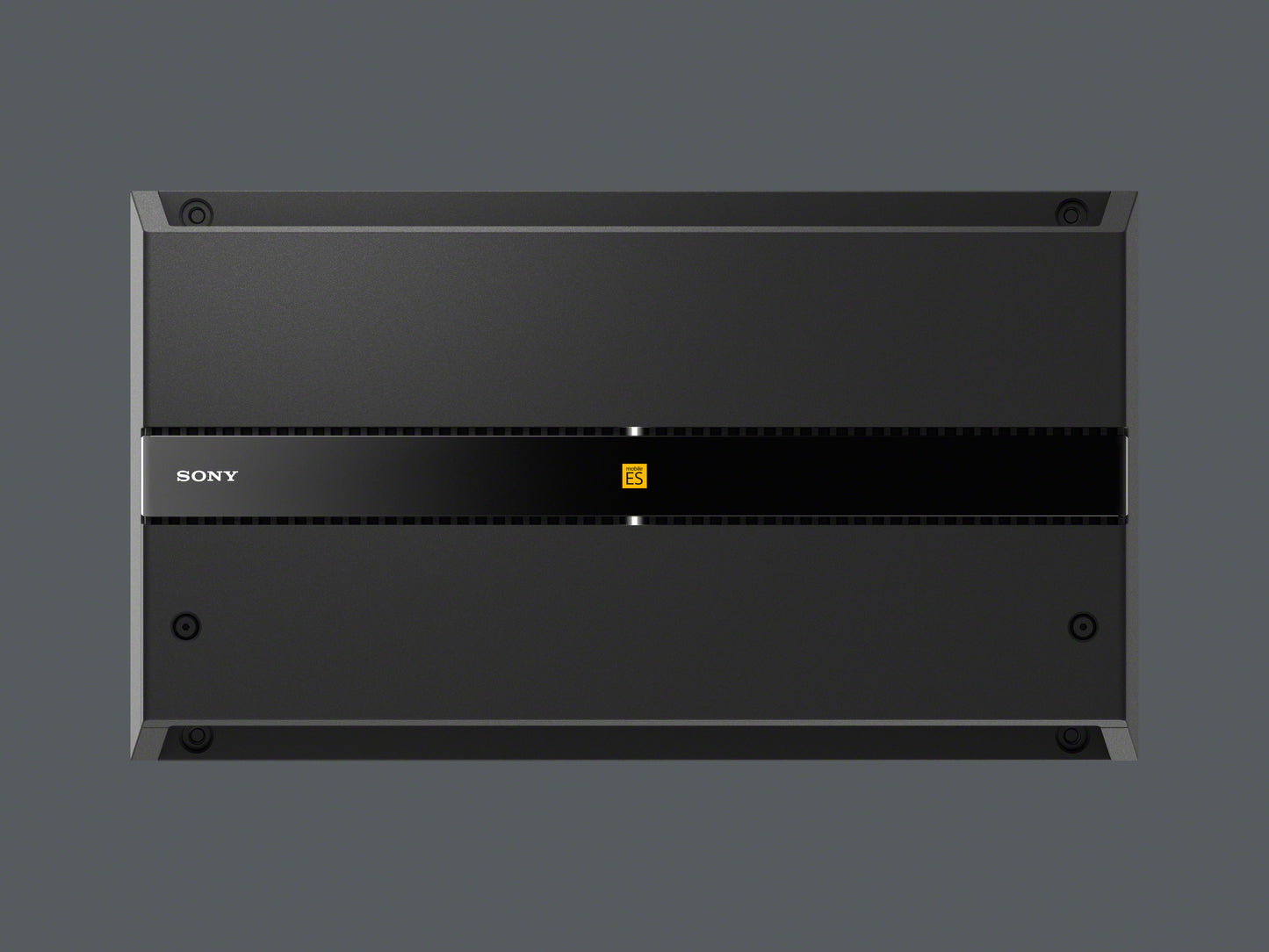

Sony XM-6ES Mobile ES™ 6-channel Power Amplifier
- 100W x 6 (330W x 3 bridged) RMS output power at 4 ohms
- 165W x 6 RMS output power at 2 ohms
- High-Resolution Audio compatible
- Signal summing for seamless connection to factory audio and combined pre-outs

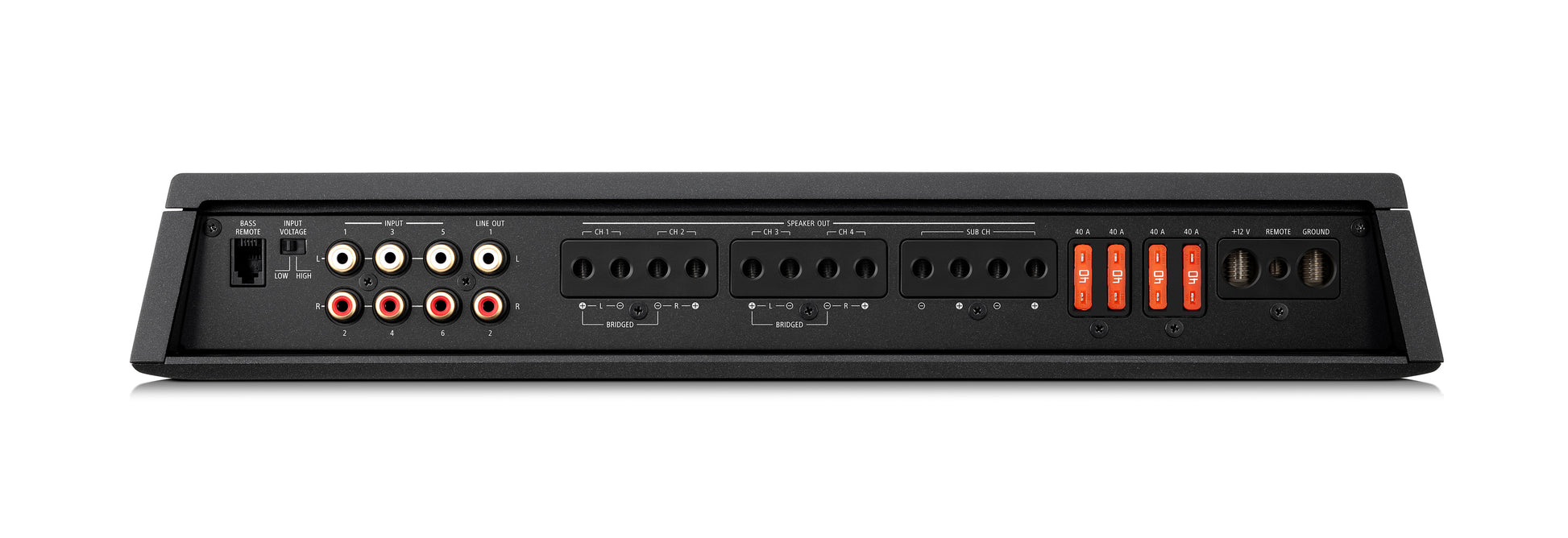

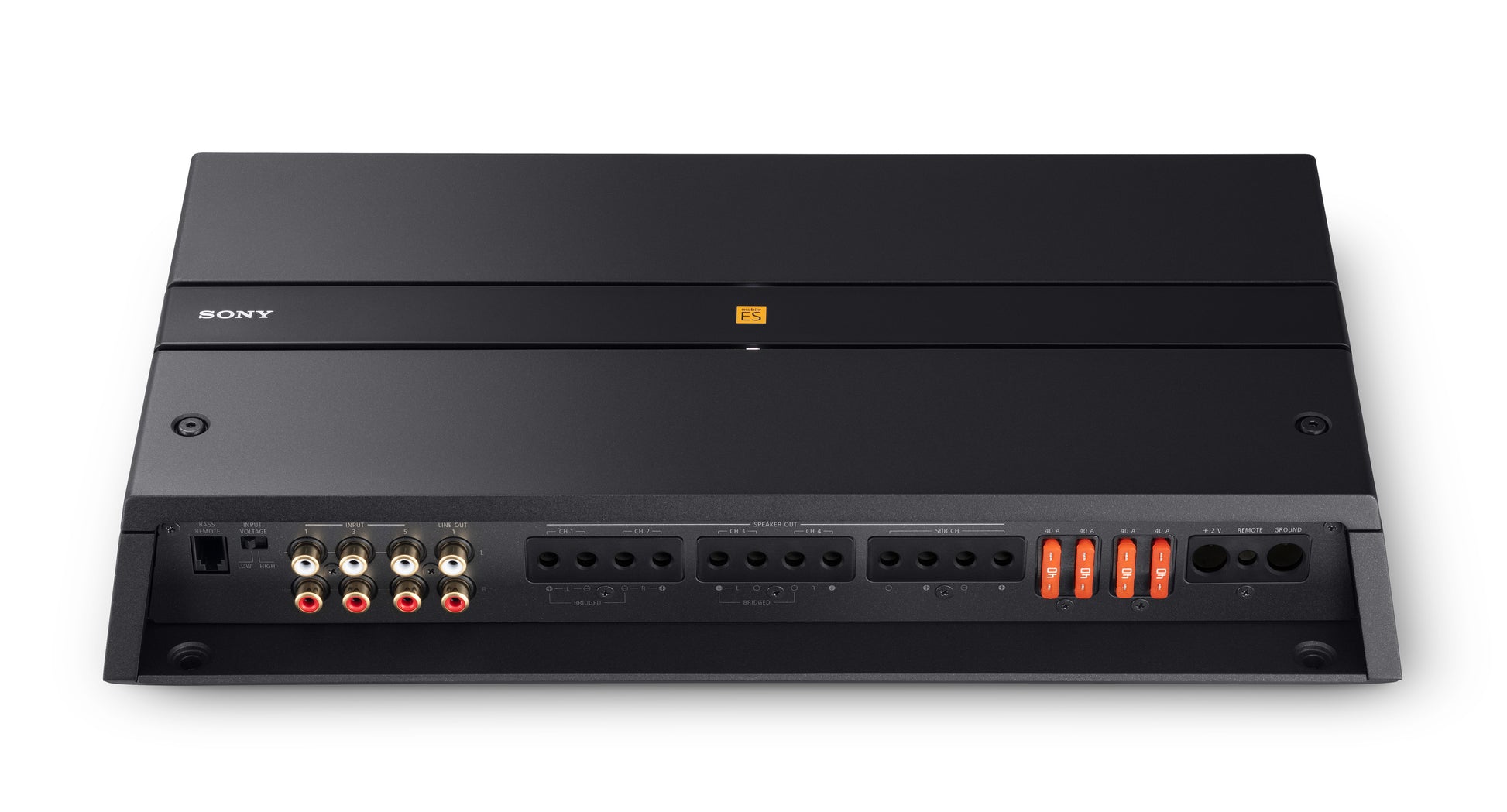

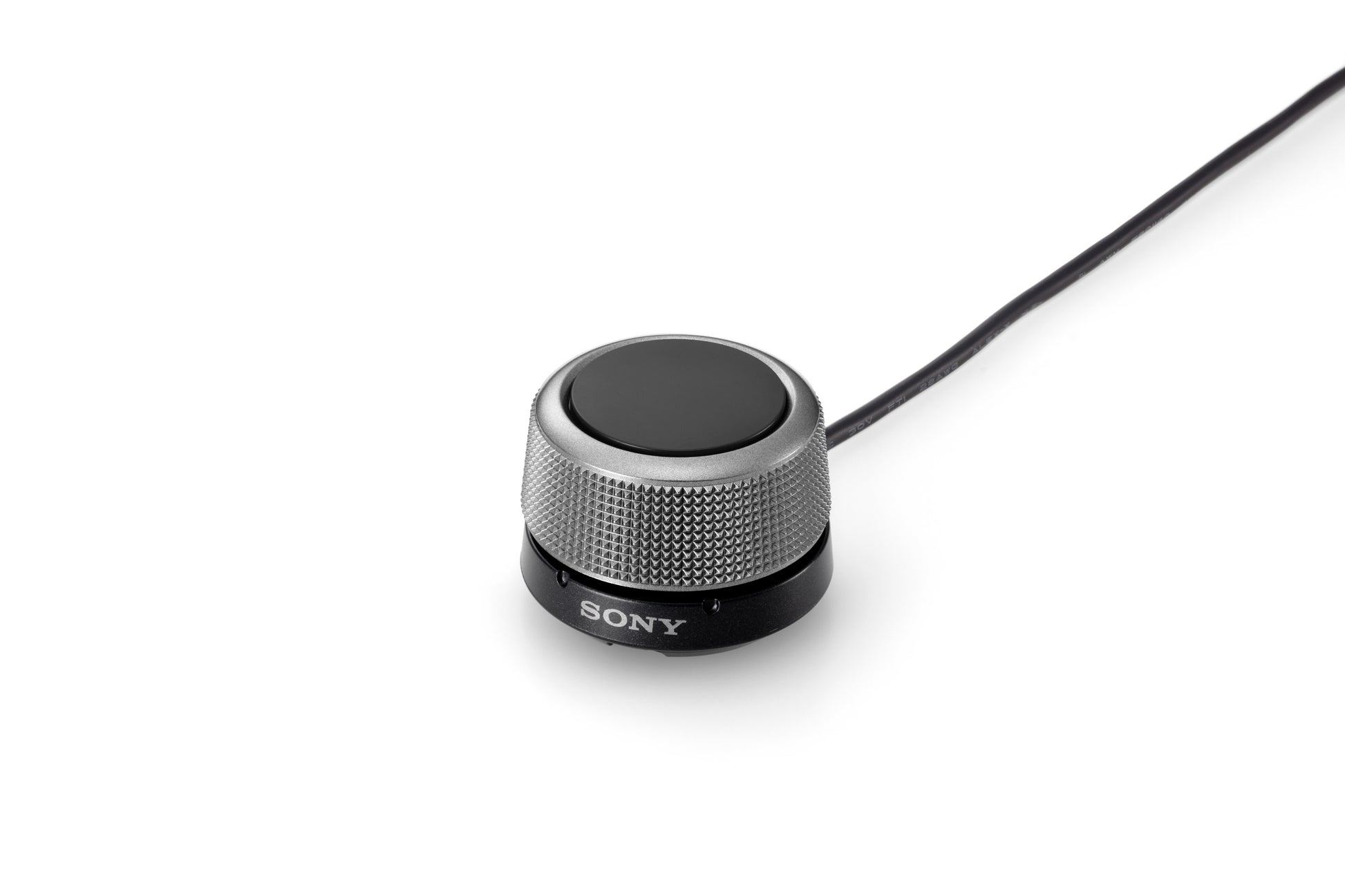

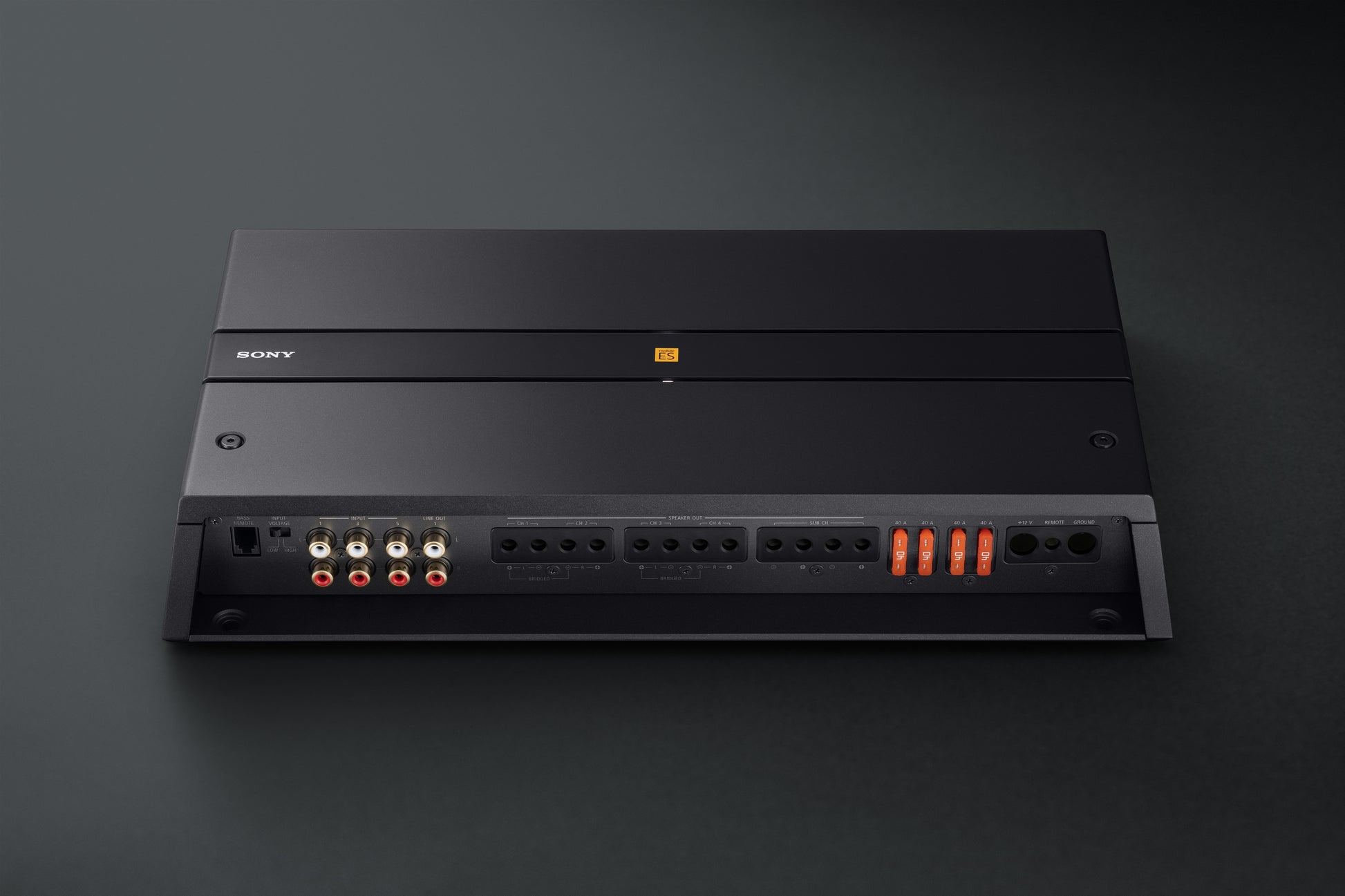

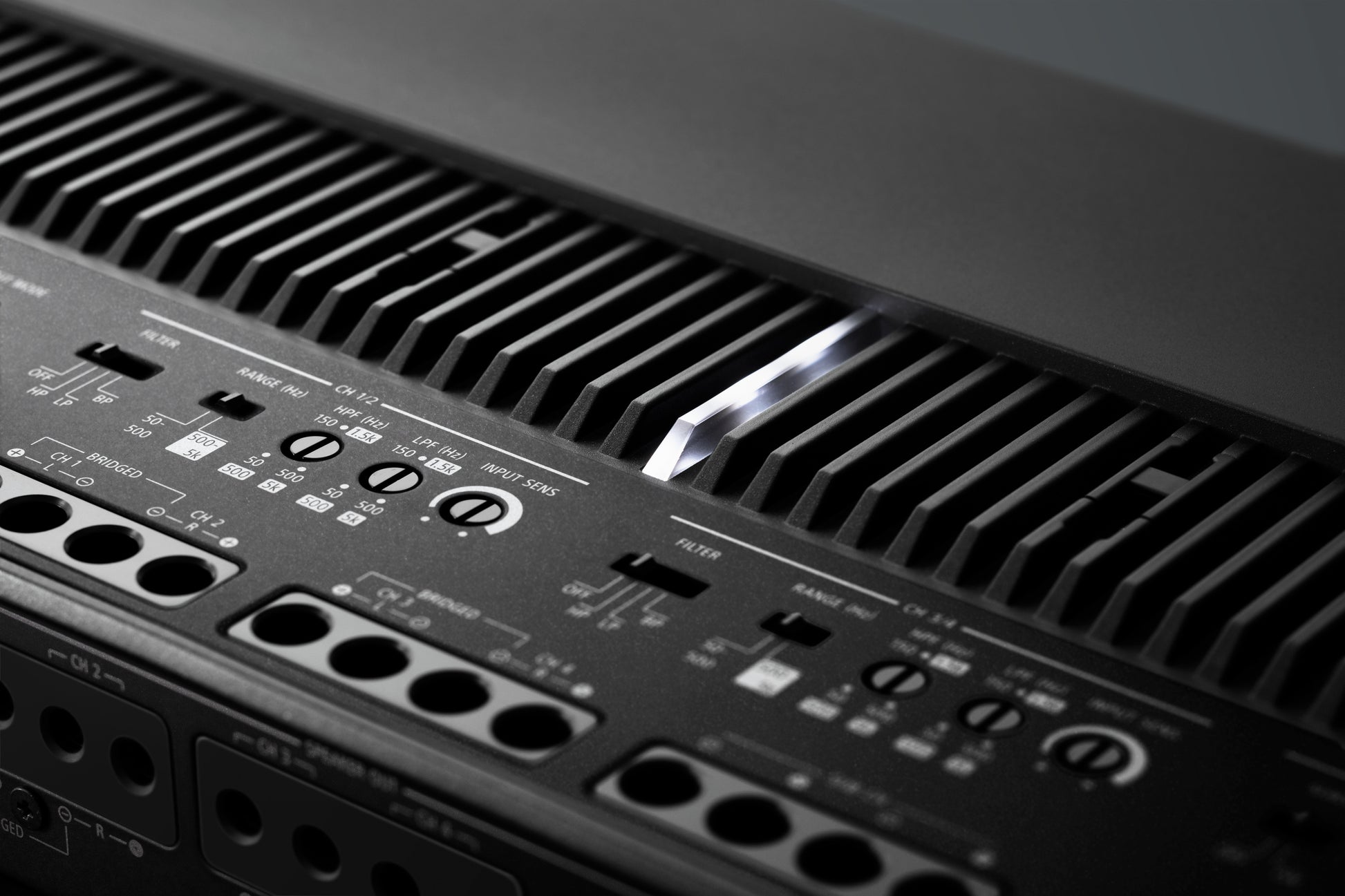

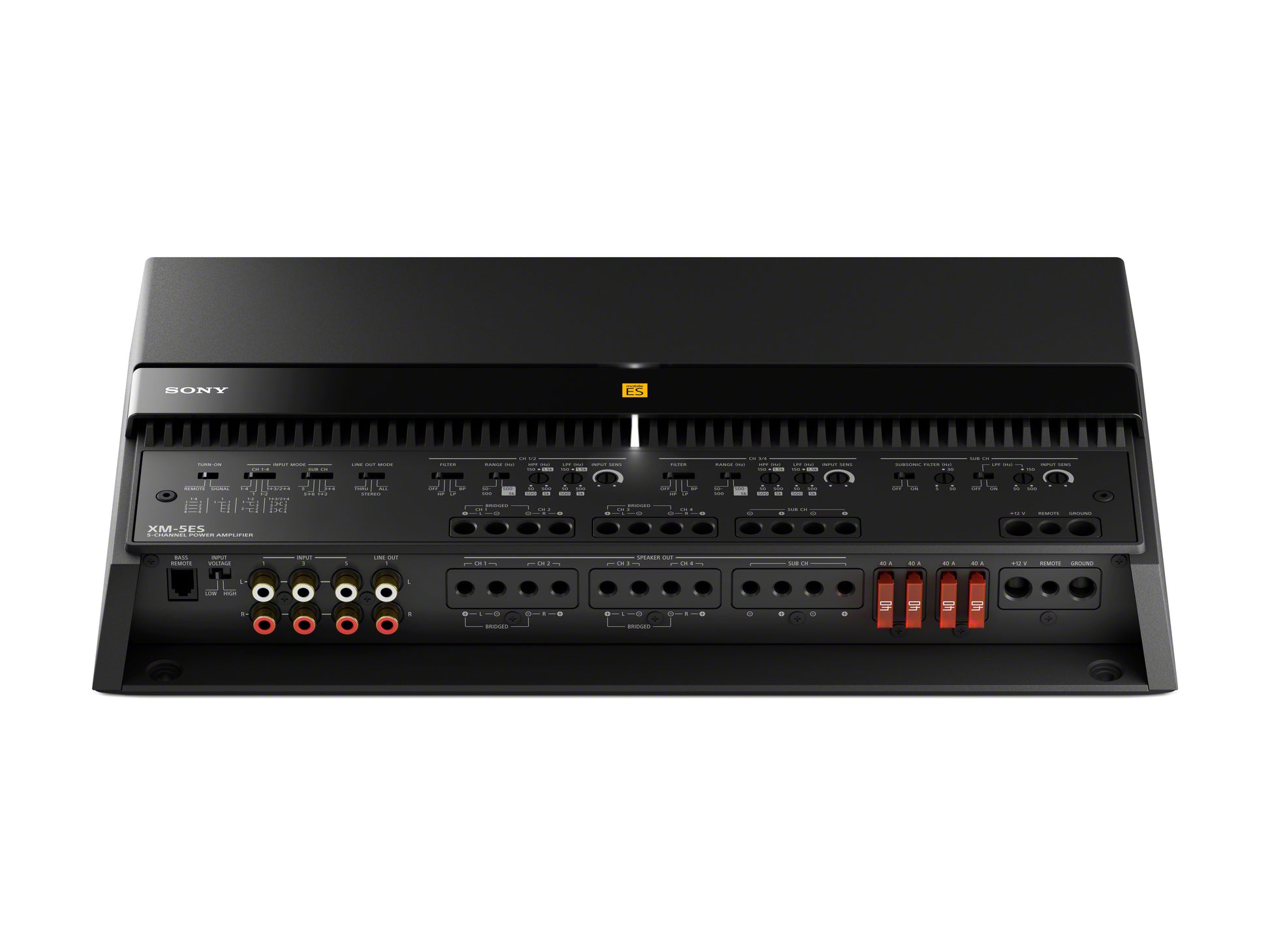

- Updated connection terminal/control panel design, and supplied bass remote
Others
Warranty card
3-year warranty
Data only instruction manual language
Chinese (Traditional Chinese): Data only
Others_Car Amplifier
C/O: Thailand
Amplifier
Channel Configuration
6ch/5ch/4ch/3ch/2ch
Filter
High Pass Filter: Variable(500-5kHz) Slope - High Pass Filter: 12dB/oct Low Pass Filter: Variable(50-500Hz) Slope - Low Pass Filter: 12dB/oct
Output Power
CTA Rated At 4 ohm: 100W×6 at 1kHz,1% THD, CTA Rated At 4 ohm-Bridged: 330W×3 BTL at 1kHz,1% THD, CTA Rated At 2 ohm: 165W×6 at 1kHz,1% THD, Maximum (14.4 V) At 4 ohm: 1080W, Maximum (14.4 V) At 2 ohm: 1620W
Frequency Response
10Hz-40kHz
Signal to noise ratio (S = Rated output)
100dB
Total harmonic distortion (1 kHz)
Less than 0.05%
Input - Speaker level input
Yes
MOSFET - Output stage/Power supply
No/Yes
Subsonic high pass filter
No
Gold Plated Connectors
Yes
Current drain (rated output power at 4 ohm)
50 A (4 ohms, 100Wx6)
Weight (kg) approx.
4.06 kg
Dimensions (W x H x D in mm) approx.
380mm x 60mm x 215mm
