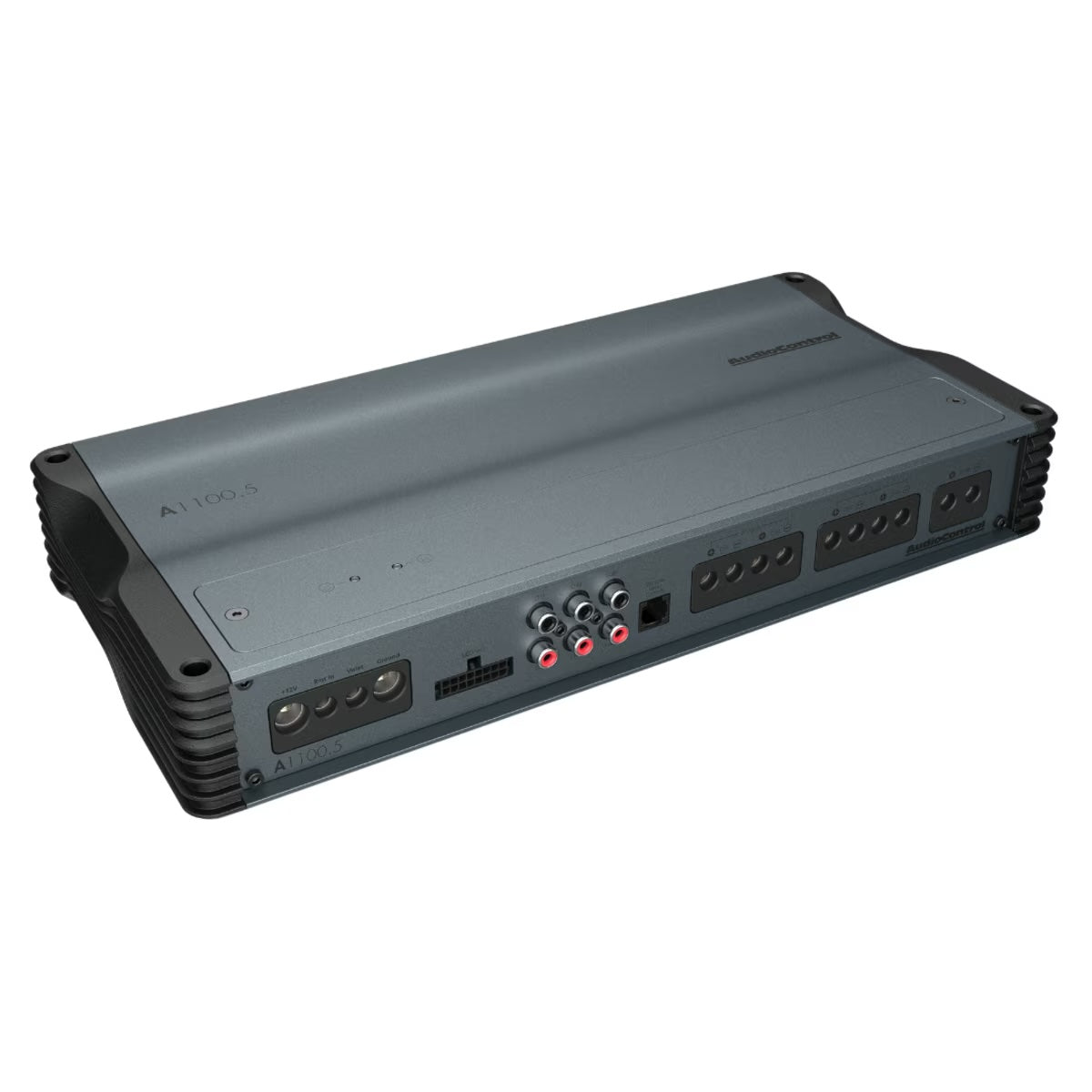

Audio Control A1100.5 AUDIOCONTROL A1100.5 5-CHANNEL ALTITUDE AMPLIFIER

Audio Control A1100.5 AUDIOCONTROL A1100.5 5-CHANNEL ALTITUDE AMPLIFIER

Inject unmatched dynamics, tight thermal control, and high-fidelity overhead into your sound system with this advanced AudioControl power amplifier. Built for pristine acoustic transparency, it handles heavy loudspeaker network current adjustments with low distortion, elevating your cabin soundstage to concert-quality levels.

Product Overview & Core Highlights:

A1100.5  AUDIOCONTROL A1100.5 5-CHANNEL ALTITUDE AMPLIFIER

Elevate your audio experience with AudioControl's Altitude Amplifier Series, designed from the ground up to be sleek and
modern with a minimalist aesthetic. Performing at the top of their class, these amplifiers offer robust power and exceptional quality.

Altitude amplifiers feature Valet Mode, which safeguards your system from unintended damage by limiting the maximum volume to 25% when activated. They are also compatible with start-stop systems and electric vehicles, ensuring outstanding performance in any vehicle.

Pair Altitude amplifiers with AudioControl's PNW speakers and Space or Spike subwoofers. This combination creates a
soundscape engineered to deliver the pure, uninterrupted power that AudioControl is known for.

With the ParaBASS control knobs you can fine-tune your bass for the ultimate audio experience. Customize your sound and feel the difference. Your bass, your way.

Features:

• High/Low Input Modes
• GTO™ Signal Sense
• Linkwitz-Riley Crossovers
• Start-Stop Compliant
• High Power Output in a Sleek Chassis
• ParaBASS® Low Frequency Contouring
• Valet Mode Option
• Optional Remote Level Control (ACR-1)
• EV Compliant up to 17V

Specifications:

Channels: 5/4/3

Inputs: 6

Continuous Power (RMS) at 14.4V:
90W x 4 @ 4Ω +
400W x1 @ 4Ω
125W x 4 @ 2Ω +
600W x 1 @ 2Ω

Maximum Input Voltage:
Low: 6V max
High: 20V max

S/N Ratio (ref: rated power):
95.1 dBA
channels 1-4
103.9 dBA
channel 5

Valet Mode: Y

THD+N:
<0.25% &
<0.75%

Subsonic Filter: Variable

Linkwitz-Riley X-Over:
Mode:
Off
High Pass
Low Pass
Linkwitz-Riley X-Over Freq. Range: 50Hz -5K Hz

Bass Processing: ParaBASS®

Remote Level Control: ACR-1 (optional)

🚨 Critical Performance Specifications:

• Product Component Classification: High-Current multi-channel or sub-bass 5-Channel Hybrid System Array Amplifier
• Continuous Power Handling Output (RMS): 100W x 4 Channels + 500W Subwoofer Channel @ 2 Ohms RMS output
• Amplifier Circuit Design Class: High-Efficiency Class-D or Class-AB Architecture
• Integrated Digital Signal Processor (DSP): No
• Signal Level Input Adaptability Handling: Up to 40V Speaker-Level inputs with switchable load resistors
• Signal-to-Noise Ratio (SNR): >102dB relative to rated output capacity
• Total Harmonic Distortion (THD): <0.01% for elite audiophile tracking presence
• Total Package Boxed Shipping Weight: 10.0 lbs
