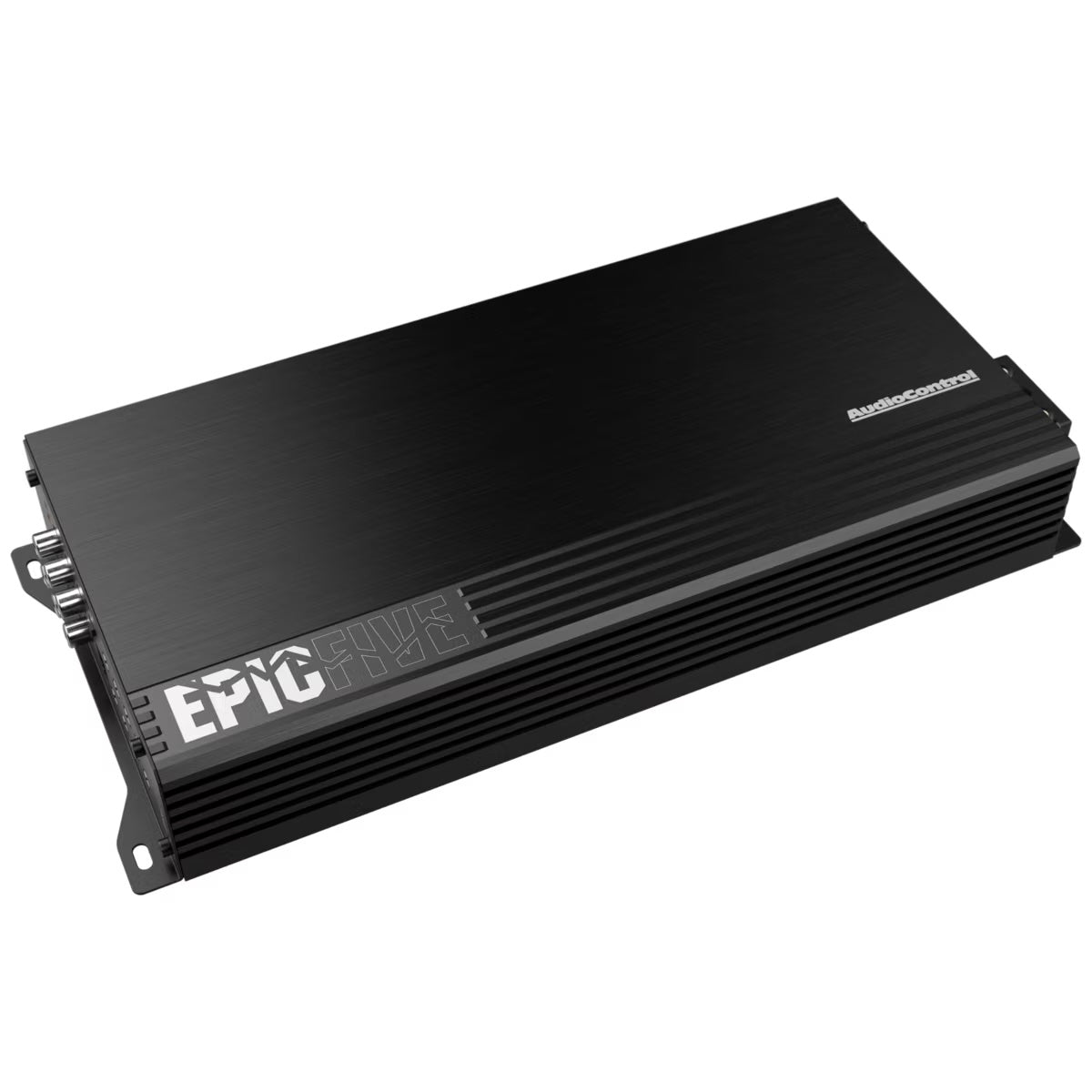

Audio Control EPICFIVE AudioControl EPIC Series 5-Channel Amplifier

The AudioControl EPIC Series 5-Channel Amplifier delivers top-quality sound in a compact, thermally efficient design, all at an unbeatable price. Engineered with a high-current Class D design, ensuring maximum power output while maintaining efficiency. Perfectly paired with The Epicenter Bass Restoration Processor (sold separately), it enhances your bass experience to new levels. This amplifier offers exceptional sound quality for the price and is the only AudioControl amplifier to include a bass knob for easy control.

• Digital Class-D Amplifier: Powerful yet compact, designed to handle 2 ohm loads for high output.
• 12dB/Octave Variable Low Pass Filter: Matches your subwoofer's frequency range for optimal performance
• 12dB/Octave Variable High Pass Filter: Matches your speaker’s frequency range for optimal performance.
• 0-12dB Variable Bass Boost Q: Selects the frequency to boost
• Direct Wire Terminals with Hex Screws: Provide solid, reliable connections.
• 4-Gauge Power Terminal and 8-Gauge Speaker Terminal: Designed for maximum current flow
• 91dB+ Signal-to-Noise Ratio (@ CEA Standard): Ultra-efficient idle draw (< 0.5-1A)
• Smart Auto Reset Protection Circuit: Multiple protection modes are in place to prevent damage if your amplifier encounters an issue

  1. Output Over-Current Protection (OCP)
  2. Input Over-Voltage Protection (OVP)
  3. Input Under-Voltage Protection (UVP)
  4. Output DC-Offset Protection (DCP)
  5. Over-Temperature Protection (OTP)

Specifications

• Continuous Power (RMS) @ 14.4V
  150W x 4 + 500w x 1 @ 2Ω
  75W x 4 + 300w x 1 @ 4Ω
  300W x 2 @ 4 Ω (Bridged)
  700w x 1 @ 1Ω

• Signal to Noise
  >92dB

• Subsonic Filter: Yes

• EPIC Boost: Yes

• Dimensions (WxLxH)
  6.1"x13.35"x2.01"

• Strapable: No

• Epicenter Link: Yes

• Remote Level Control: Included
