Audio Control EPICFOUR AudioControl EPIC Series 4-Channel Amplifier

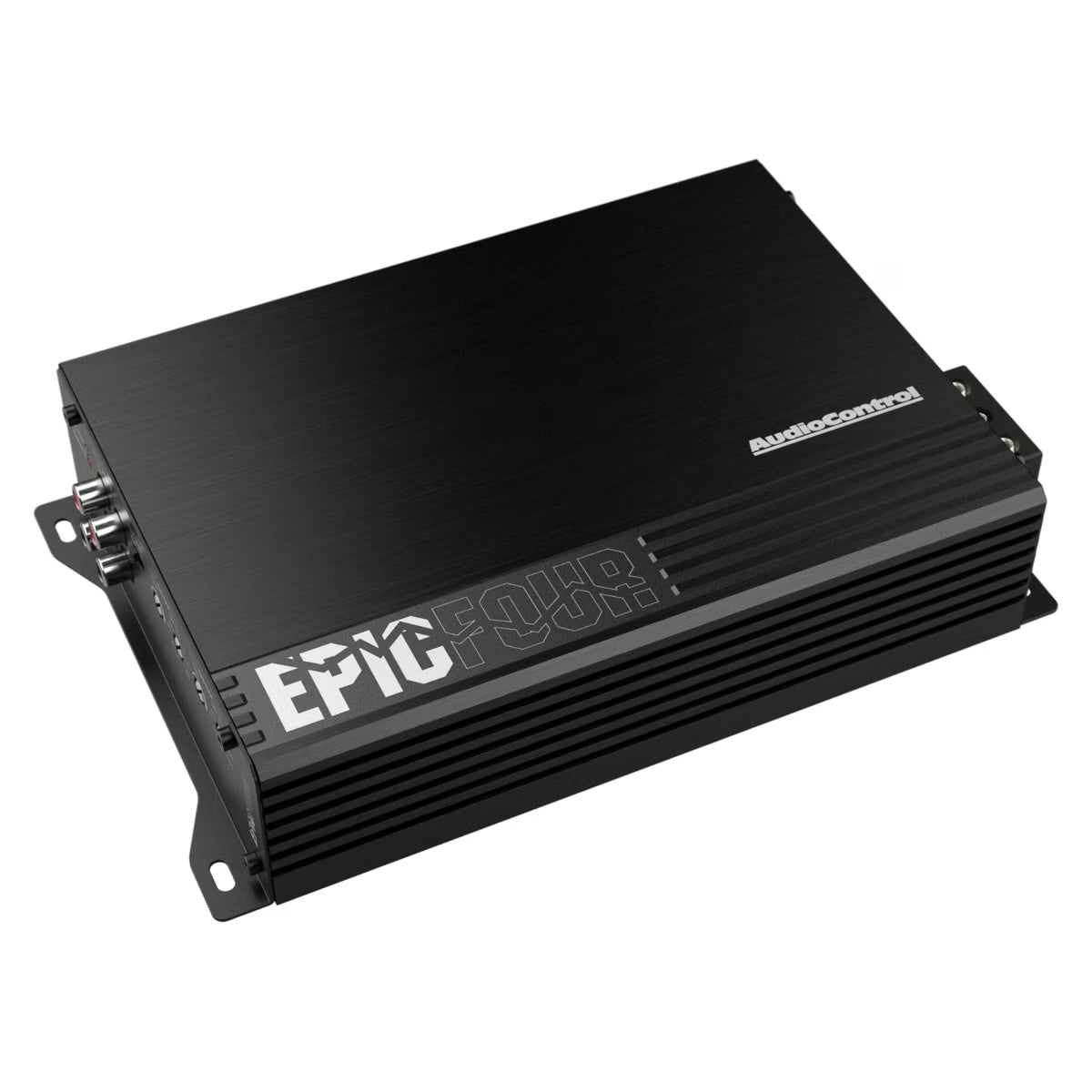

EPICFOUR AudioControl EPIC Series 4-Channel Amplifier

The AudioControl EPIC Series 4-Channel Amplifier delivers top-quality sound in a compact, thermally efficient design, all at an unbeatable price. Engineered with a high-current Class D design, it’s 2Ω stable, ensuring maximum power output while maintaining efficiency. With a smart auto-reset protection circuit and solid power/speaker terminals secured by hex screws, the EPIC Series amplifier offers reliable, exceptional sound quality in a rugged, space-saving package.

Features

• Digital Class-D Amplifier: Powerful yet compact, designed to handle 2 ohm loads for high output.
• 12dB/Octave Variable High Pass Filter: Matches your speaker’s frequency range for optimal performance.
• 0-12dB Variable Bass Boost Q: Selects the frequency to boost
• Direct Wire Terminals with Hex Screws: Provide solid, reliable connections.
• 4-Gauge Power Terminal and 8-Gauge Speaker Terminal: Designed for maximum current flow
• 91dB+ Signal-to-Noise Ratio (@ CEA Standard): Ultra-efficient idle draw (< 0.5-1A)
• Smart Auto Reset Protection Circuit: Multiple protection modes are in place to prevent damage if your amplifier encounters an issue

  1. Output Over-Current Protection (OCP)
  2. Input Over-Voltage Protection (OVP)
  3. Input Under-Voltage Protection (UVP)
  4. Output DC-Offset Protection (DCP)
  5. Over-Temperature Protection (OTP)

Specifications

• Continuous Power (RMS) @ 14.4V
  200W x 4 @ 2 Ω
  100W x 4 @ 4 Ω
  400W x 2 @ 4 Ω (Bridged)

• Signal to Noise
  >90dB

• Subsonic Filter: No

• EPIC Boost: No

• Dimensions (WxLxH)
  6.1"x9.41"x2.09"

• Strapable: No

• Epicenter Link: No

• Remote Level Control: No
