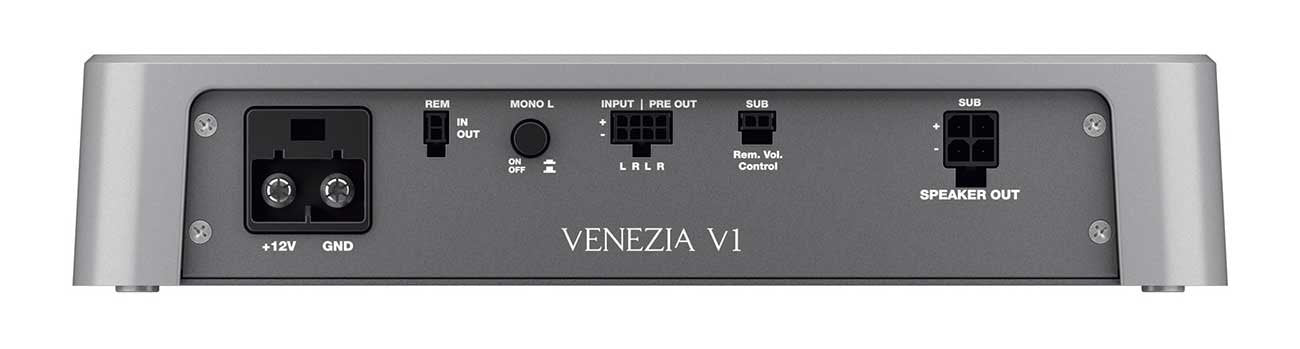

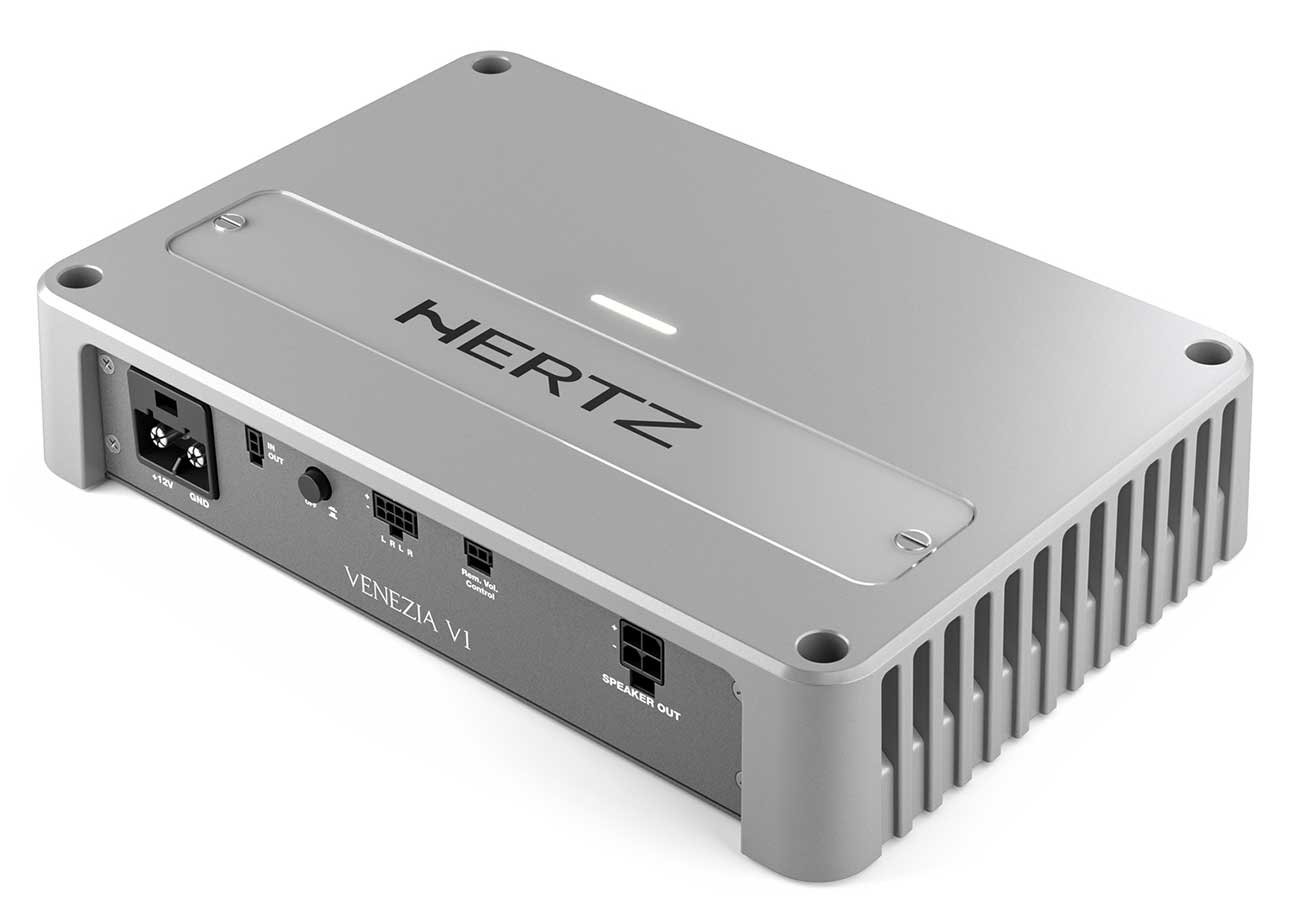

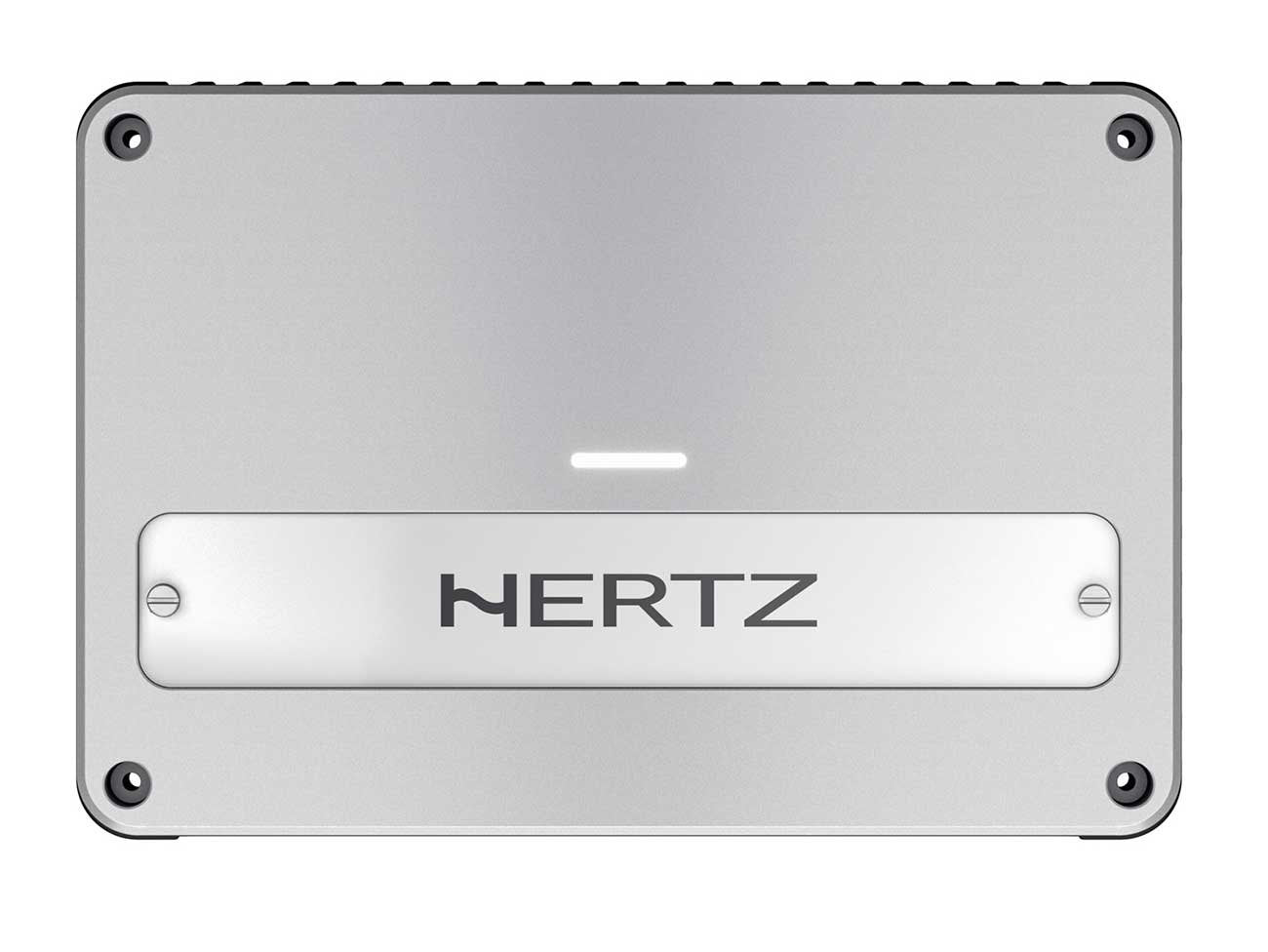

Hertz VENEZIA V1 1260W Class D Mono Channel Marine Amplifier

Hertz VENEZIA V1 1260W Class D Mono Channel Marine Amplifier

Hertz -

Regular price $999.99 USD
Regular price $1,140.00 USD Sale price $999.99 USD
Sale Special Order this item by Clicking the Chat Button Below
Shipping calculated at checkout.

VENEZIA V1 is the most-powerful mono Hertz marine amplifier ever, featuring 1260 W @ 1Ω stable! Hertz Advanced Class D technology maximizes efficiency and power while minimizing heat and electromagnetic radiation. Venezia V1 is engineered and tested for marine applications (UV, salt-fog, vibrations, high/low temperature, thermal shock) and has obtained the IPX2 certification. The Safe-Lock Input, Output, and Power connections streamline installation and enhance durability in the field. The fanless convection cooling system is integrated into the cast heat-sink chassis. The balanced fully-differential input circuitry rejects electromagnetic noise and interference. The powerful and flexible preamp filter options are far beyond most mobile amplifier capabilities. Last but not least, Venezia V1 is fully protected by short-circuit, overload, and thermal protections - with auto-resetting.

Channels 1
POWER SUPPLY
Power supply voltage 9 ÷ 16 VDC
ldling current (power ON/OFF): 1 A / 0.04 mA
Consumption@ 1Ω, 14.4 VDC (Max Musical Power): 52A
Remote In: 7 ÷ 15 VDC - 1 mA
AMPLIFIER STAGE
Distorsion - THD (100Hz @ 4Ω): <0,02%
Bandwidth: 10 ÷ 500 Hz
S/N Ratlo (A welghted @ 1 V): 102 dB
Damping factor (100Hz @ 4Ω) 500
Pre-ln sensitivity: 0.2 ÷ 5 VRMS
Pre-ln impedance: 10kΩ
Load impedance (MIN) 1 Ω
Adjustable Crossovers yes
Output Power
OUTPUT POWER (RMS) @ 14.4 VDC, THD 1%
1Ch 700 W (4Ω)
1Ch 1260 W (2Ω)
1Ch 1260 W (1Ω)
Total Power 1260 W
