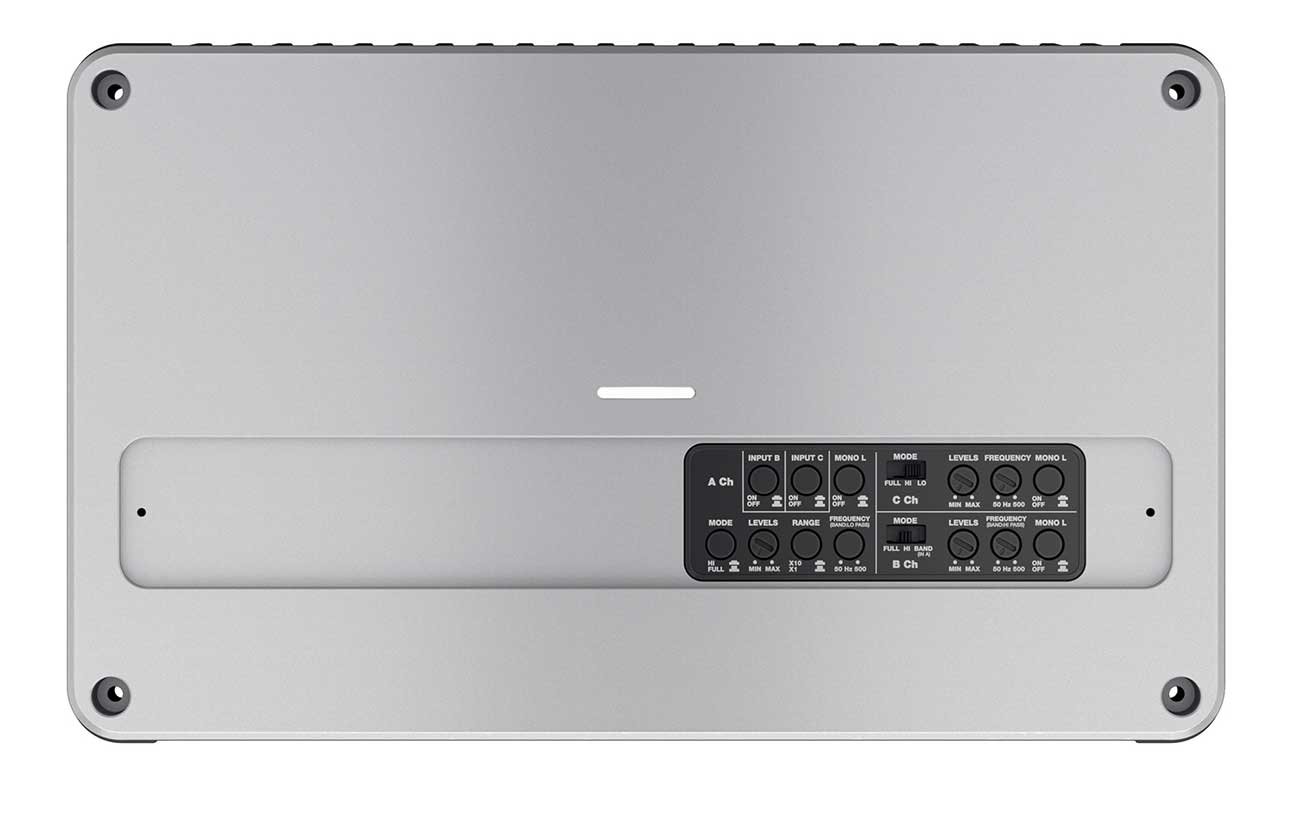

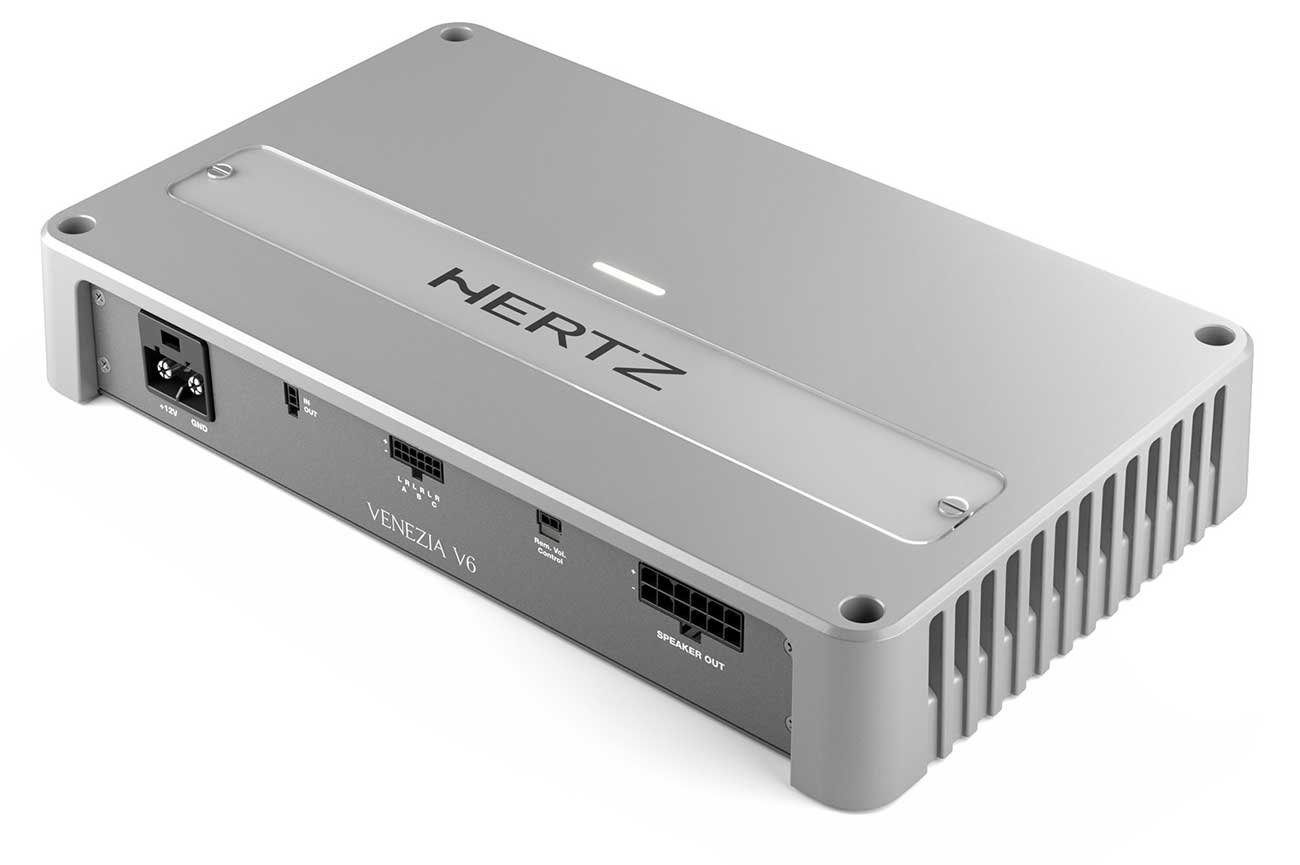

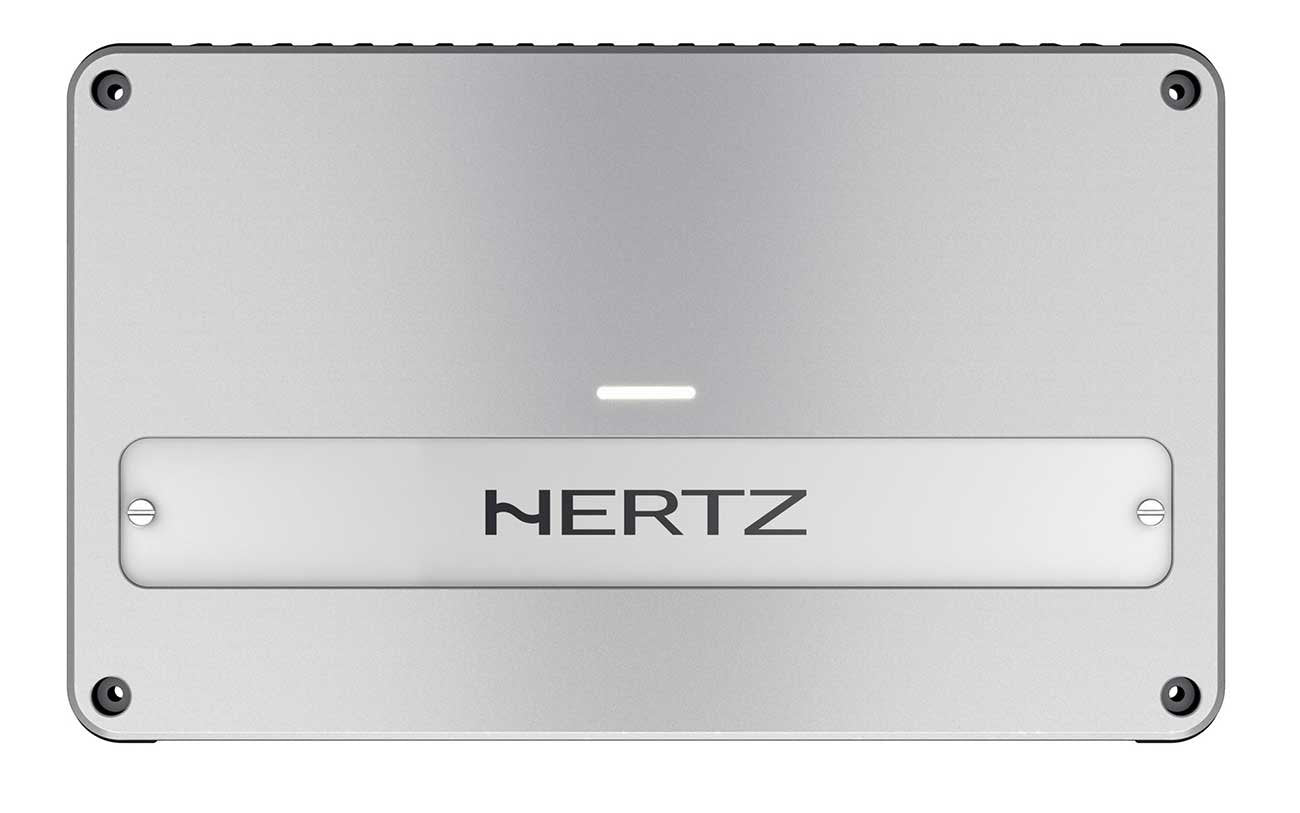

Hertz VENEZIA V6 1740W Class D 6-Channel Marine Amplifier

Hertz VENEZIA V6 1740W Class D 6-Channel Marine Amplifier

Hertz -

Regular price $1,399.99 USD
Regular price $1,600.00 USD Sale price $1,399.99 USD
Sale Special Order this item by Clicking the Chat Button Below
Shipping calculated at checkout.

Hertz VENEZIA V6 1740W Class D 6-Channel Marine Amplifier

Venezia V6 is the first six-channel Hertz marine amplifier, featuring the impressive power of 160 W x 6 (4Ω), delivering the output levels needed in the marine environment! Hertz Advanced Class D technology maximizes efficiency and power while minimizing heat and electromagnetic radiation - enhancing sound quality that reaches new highs with Hi-Res certification! High-powered channels with bridging capability. Venezia V6 is engineered and tested for marine applications (UV, salt-fog, vibrations, high/low temperature, thermal shock) and has obtained the IPX2 certification. The Safe-Lock Input, Output, and Power connections streamline installation and enhance durability in the field. The fanless convection cooling system is integrated into the cast heat-sink chassis. The balanced fully-differential input circuitry rejects electromagnetic noise and interference. The powerful and flexible preamp filter options are far beyond most mobile amplifier capabilities. Last but not least, Venezia V6 is fully protected by short-circuit, overload, and thermal protections - with auto-resetting.

Channels 6 - 5 - 4 - 3
POWER SUPPLY
Power supply voltage 9 ÷ 16 VDC
ldling current (power ON/OFF): 1.8 A / 0.04 mA
Consumption@ 2Ω, 14.4 VDC (Max Musical Power): 75 A
Remote In: 7 ÷ 15 VDC - 1 mA
AMPLIFIER STAGE
Distorsion - THD (100Hz @ 4Ω): <0,06%
Bandwidth: 10 ÷ 42 kHz
S/N Ratlo (A welghted @ 1 V): 100 dB
Damping factor (100Hz @ 4Ω) 130
Pre-ln sensitivity: 0.2 ÷ 5 VRMS
Pre-ln impedance: 10 kΩ
Load impedance (MIN)
@6Ch:
@5Ch:
@4Ch:
@3Ch:


2Ω + 2Ω + 2Ω +2Ω + 4Ω
2Ω + 2Ω +4Ω + 4Ω
Adjustable Crossovers yes
Output Power
OUTPUT POWER (RMS) @ 14.4 VDC, THD 1%
6Ch 160 W x 6 (4Ω)
6Ch 290 W x 6 (2Ω)
5Ch 160 x 4 (4Ω) + 580 x 1 (4Ω)
5Ch 290 x 4 (2Ω) + 580 x 1 (4Ω)
4Ch 160 x 2 (4Ω) + 580 x 2 (4Ω)
4Ch 290 x 2 (2Ω) + 580 x 2 (4Ω)
3Ch 580 x 3 (4Ω)
Total Power 1740 W
