Wet Sounds REVO Series Subwoofers - REVO 10

Unlock spectacular sub-surface depth and clear onboard soundstage warmth with the high-output marine speaker drivers and enclosures of Wet Sounds. Built inside rigid, UV-stabilized composite bodies designed to shrug off severe salt fog, intense wave spray, and continuous solar exposure, these high-excursion components deliver deep, impact-heavy bass dynamics tailored for structural audio superiority.

Product Overview & Core Highlights:

Free Air REVO subs are recommended primarily for Infinite Baffle (Free Air) applications where a dedicated subwoofer enclosure is not available or practical.

High Power REVO subs are recommended for applications where there is adequate room for a specifically designed sealed or ported subwoofer enclosure.

Both 10” & 12” REVO FA subs are available in White or Black frames (Black frames use metallic grey cones). All REVO FA Subs are available in either single 2 Ohm or single 4 Ohm impedances.

All REVO 10” & 12” Subwoofers share the same design features:

• Nylas Composite Frame - to withstand extreme environmental use. Designed to accept optional RGB wiring.

• Injection Molded Composite Cone – For durability & low distortion.

• Santoprene Rubber Spider – Much more durable to water & temperature changes than a traditional treated Cotton Spider used by the majority of marine speakers & subwoofers.

• Santoprene Rubber Surround – Offers a superior bond to the composite cone.Also resists deterioration due to water, temperature & ultraviolet exposure.

• Stainless Steel Terminals – Designed to resist corrosion.

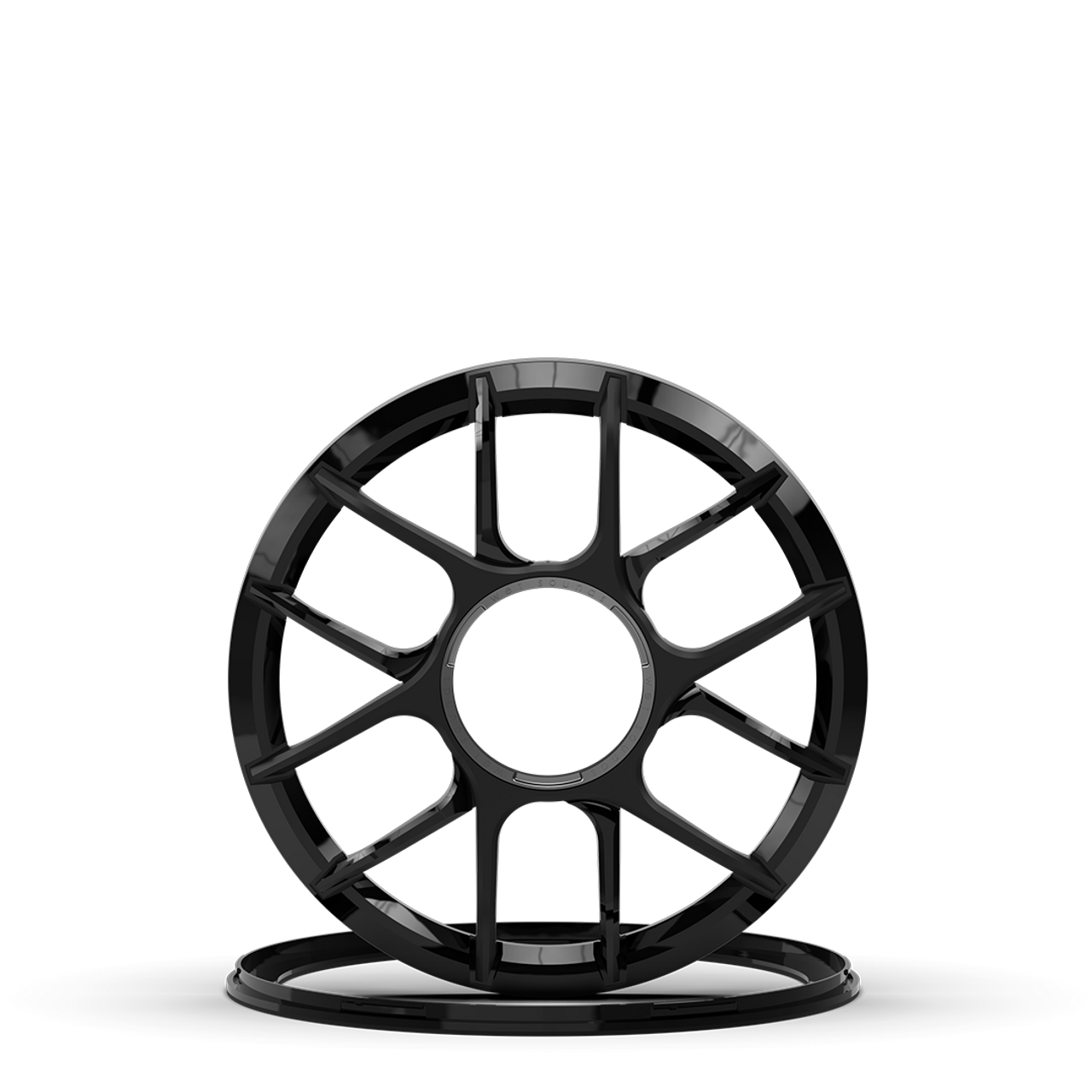

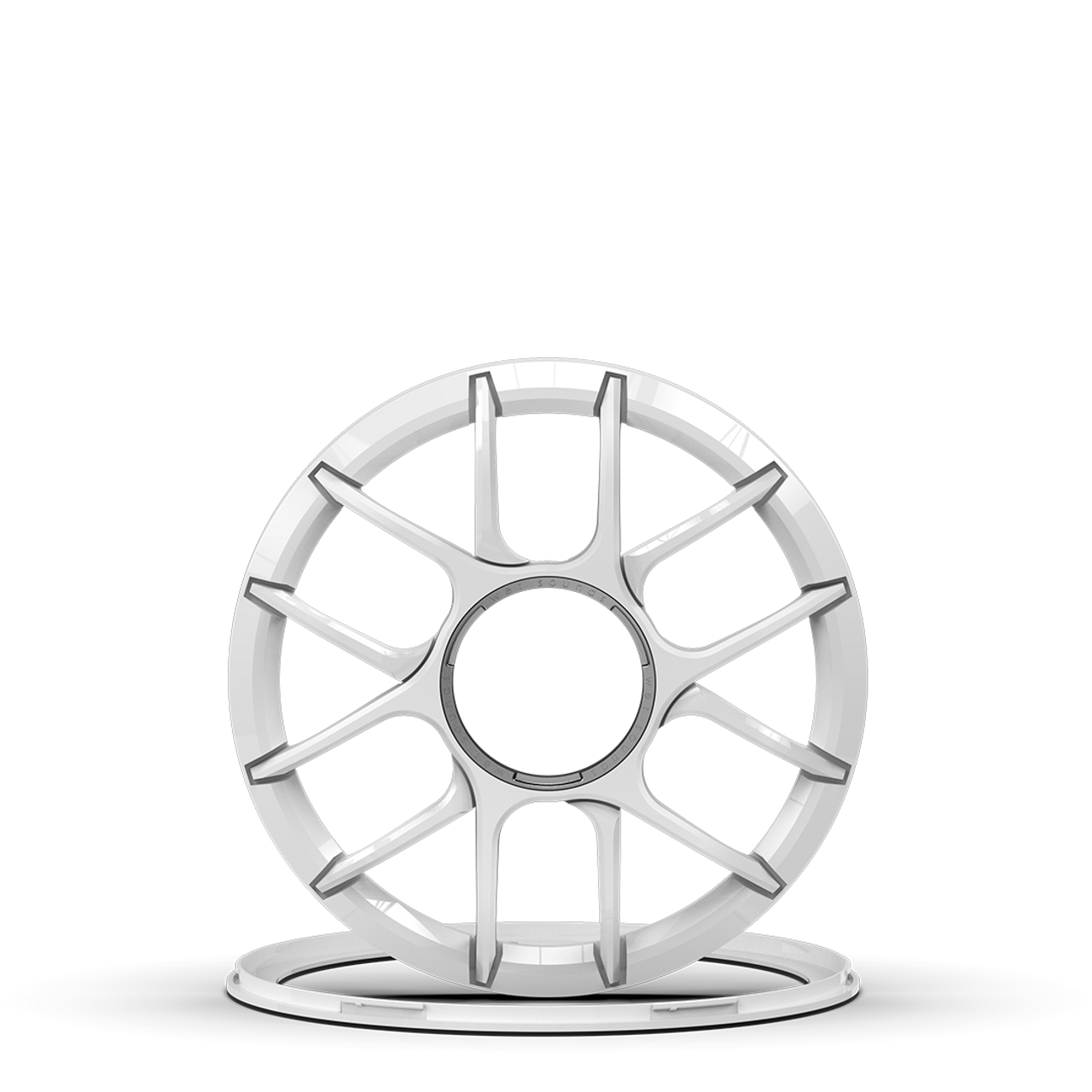

All REVO Subwoofers are sold without grills.8 different grill designs are available separately for all versions of 10” & 12” REVO HP & FA subwoofers.This will enable users to have matching grills on both REVO Coaxial In-Boat speakers & REVO Subwoofers.

Optional RGB LED Kits are available to fit under all REVO 10” & 12” subwoofer grills to enable users to have thousands of LED light display combinations.

Mounting Depth: 4.62 inches w/grill (117.47 mm) (HP 4.72in)

Frequency Response: 20Hz to 500HZ

Sensitivity: 88 db at 1watt/1 meter

Diameter: 11.02 inches w/grill (279.90 mm)

Weight: 10 lbs (4.53 kg)

RMS Watts: 300. (HP 400w)

PEAK Watts: 600 (HP 800w)

Impedance: 2ohm or 4ohm

Hole Cut Out: 9.45 inches (240.03 mm)

Box Specs: Optimized for Infinite Baffle (Free Air) applications or 1.3 cu ft sealed enclosure. (HP: Min 1.0 cu ft sealed enclosure or 1.3 cu ft ported)

Sub Size: 10"

Series: REVO

Cone Color: Black or white

Application Type:: Free Air - (HP Enclosure)

🚨 Critical Performance Specifications:

Package Quantity Configuration: Sold Individually (Includes 1 Premium High-Performance Component Unit)
Manufacturer Part Number (MPN): REVO 10 FA S2-B V3
Product Category Component: Subwoofers
Physical Driver Hardware Sizing: 8-Inch Marine Fitment
Nominal Circuit Stability Impedance: 2 Ohms Electrical Resistance
Total Package Boxed Shipping Weight: 12.0 lbs
