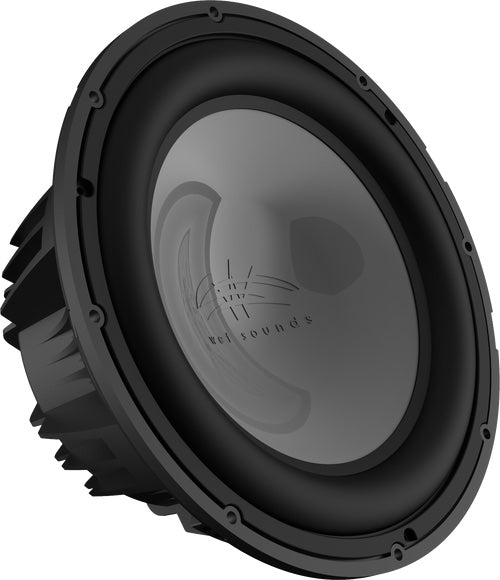

Wet Sounds REVO Series Subwoofers - REVO 12

Unlock spectacular sub-surface depth and clear onboard soundstage warmth with the high-output marine speaker drivers and enclosures of Wet Sounds. Built inside rigid, UV-stabilized composite bodies designed to shrug off severe salt fog, intense wave spray, and continuous solar exposure, these high-excursion components deliver deep, impact-heavy bass dynamics tailored for structural audio superiority.

Product Overview & Core Highlights:

Free Air REVO subs are recommended primarily for Infinite Baffle (Free Air) applications where a dedicated subwoofer enclosure is not available or practical.

High Power REVO subs are recommended for applications where there is adequate room for a specifically designed sealed or ported subwoofer enclosure.

Both 10” & 12” REVO FA subs are available in White or Black frames (Black frames use metallic grey cones). All REVO FA Subs are available in either single 2 Ohm or single 4 Ohm impedances.

All REVO 10” & 12” Subwoofers share the same design features:

• Nylas Composite Frame - to withstand extreme environmental use. Designed to accept optional RGB wiring.

• Injection Molded Composite Cone – For durability & low distortion.

• Santoprene Rubber Spider – Much more durable to water & temperature changes than a traditional treated Cotton Spider used by the majority of marine speakers & subwoofers.

• Santoprene Rubber Surround – Offers a superior bond to the composite cone.Also resists deterioration due to water, temperature & ultraviolet exposure.

• Stainless Steel Terminals – Designed to resist corrosion.

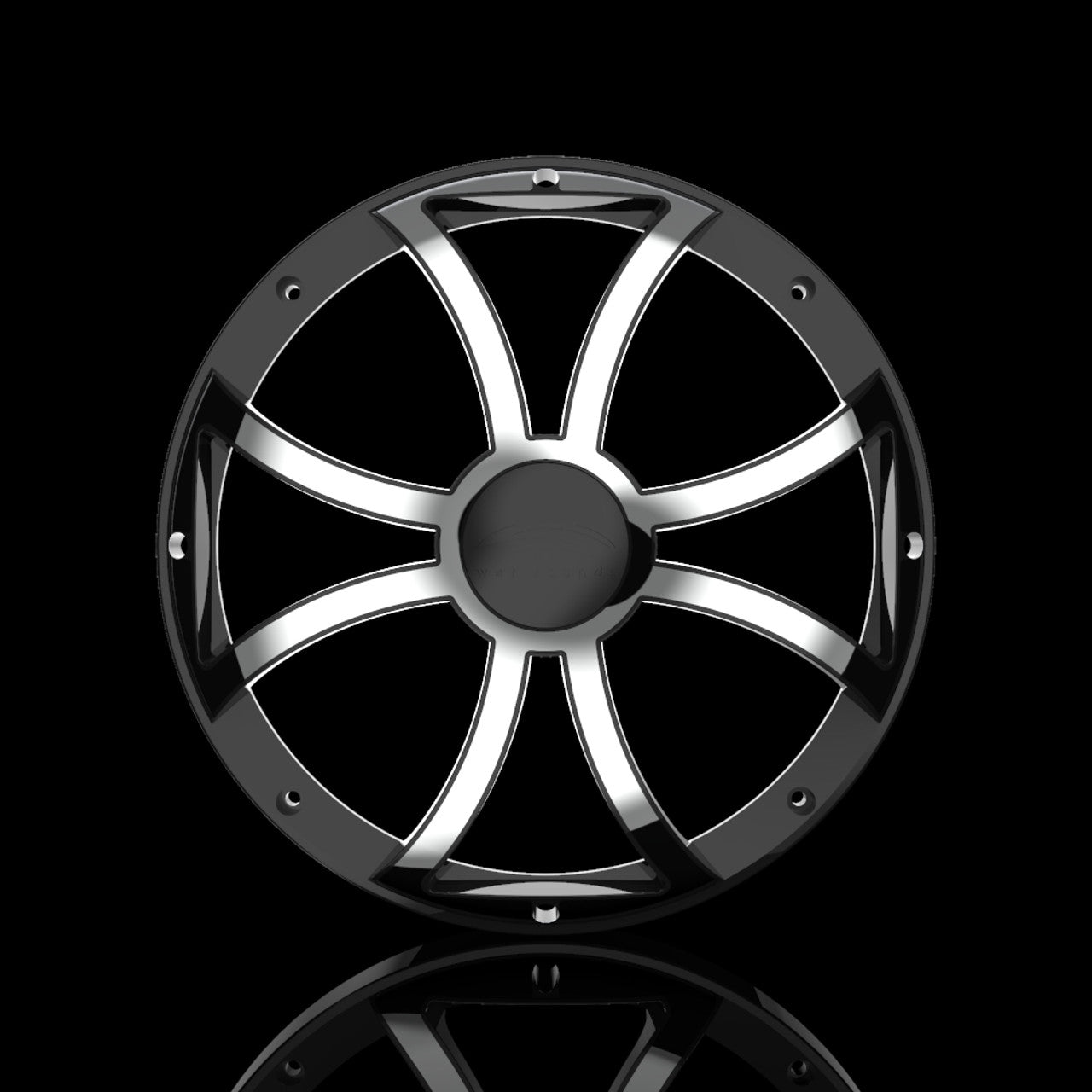

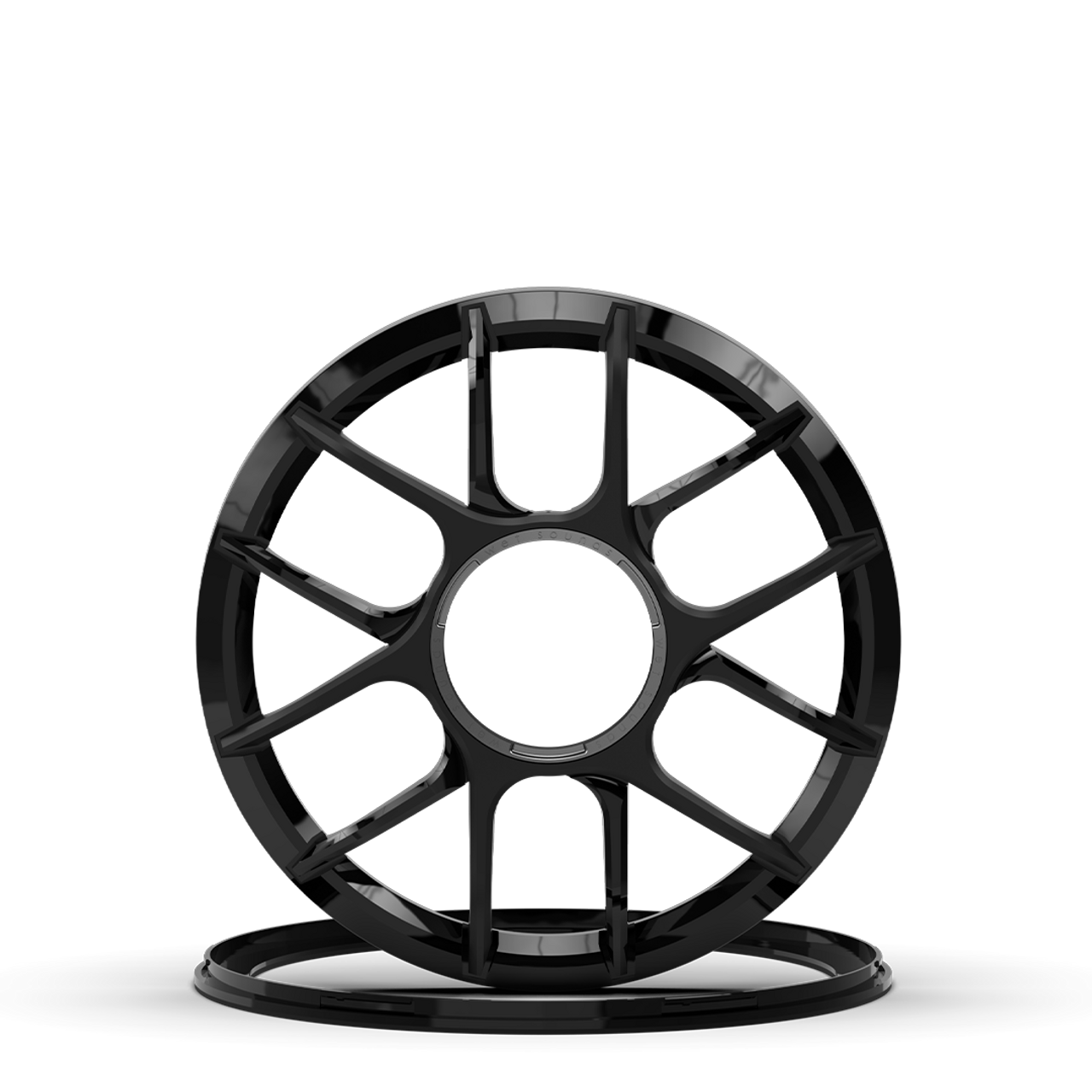

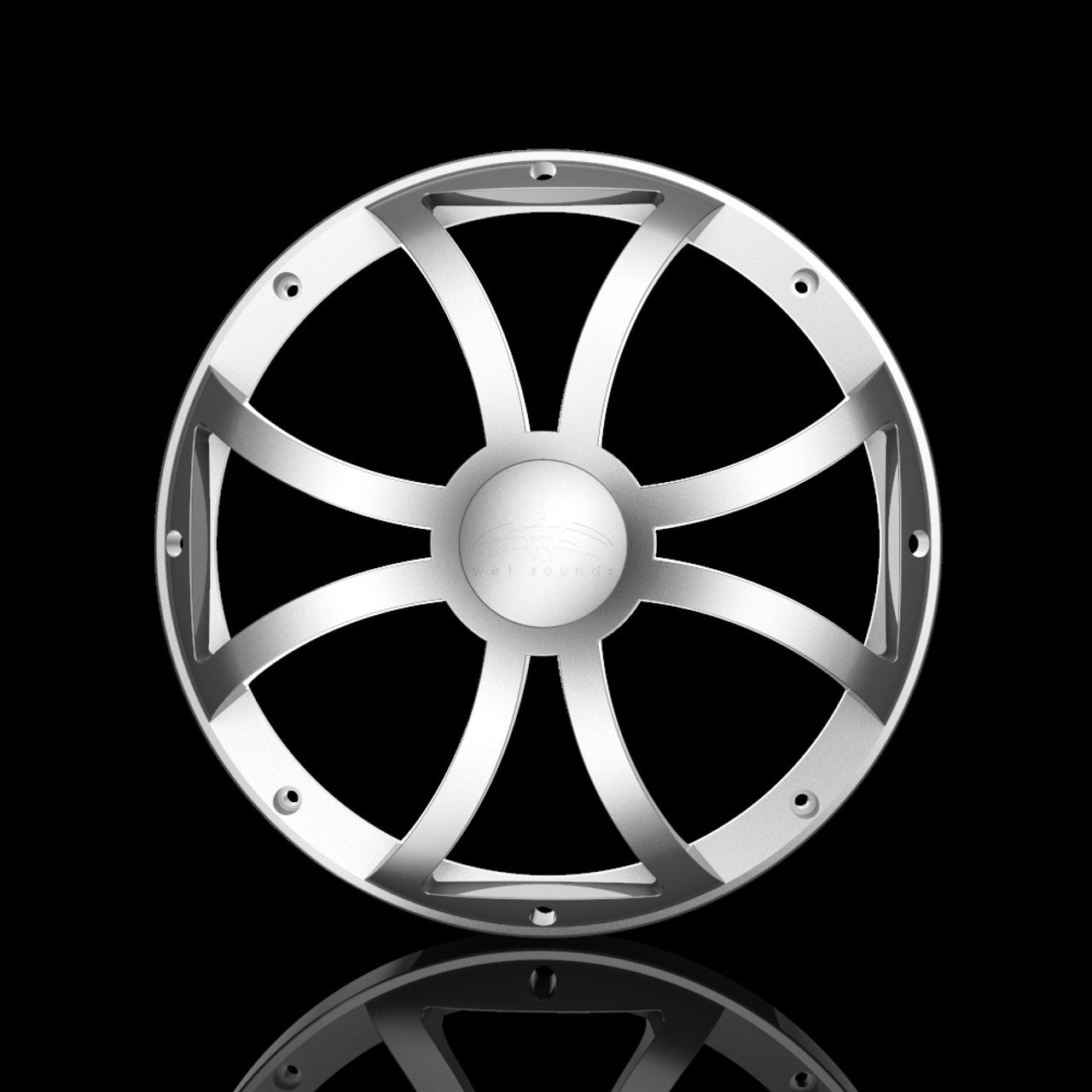

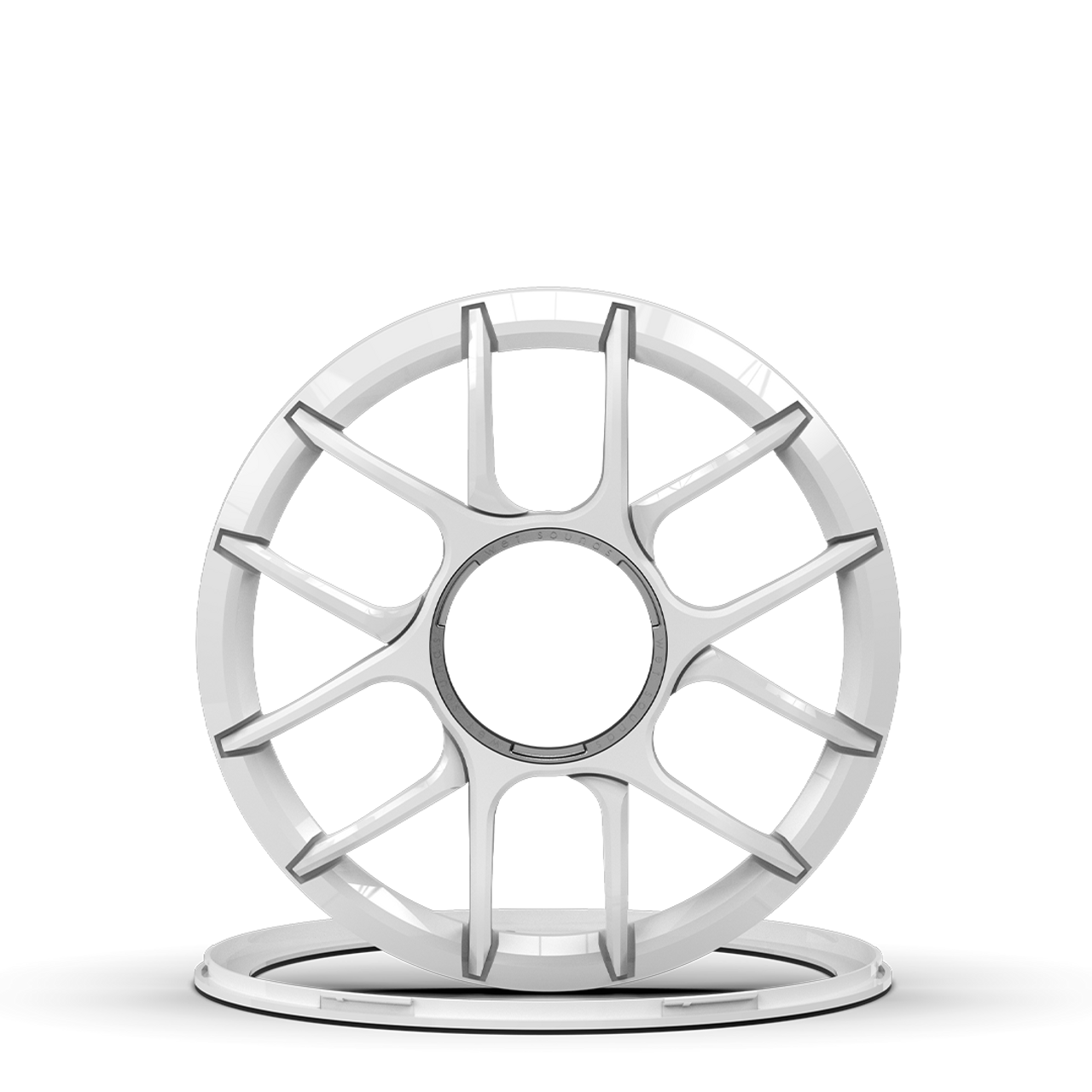

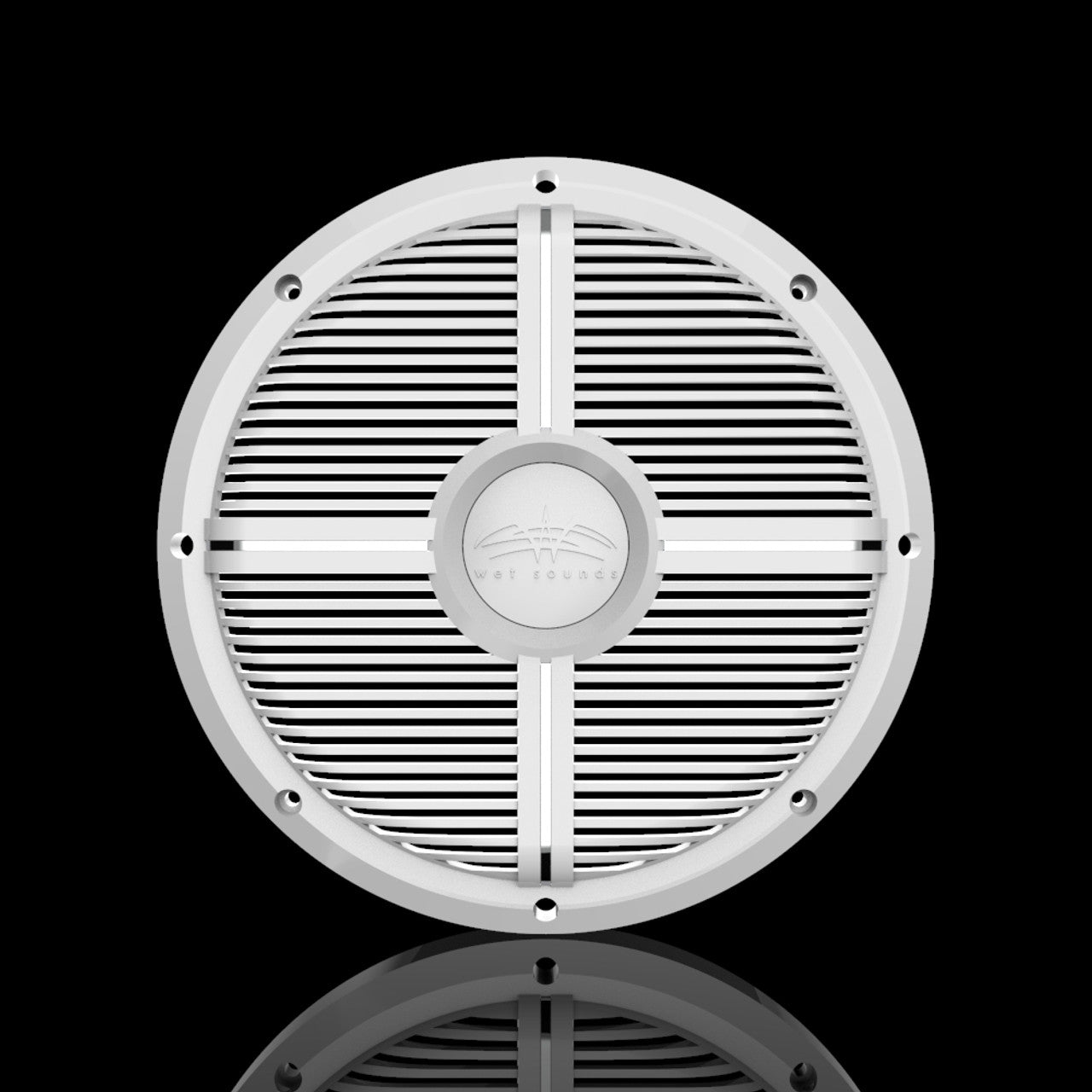

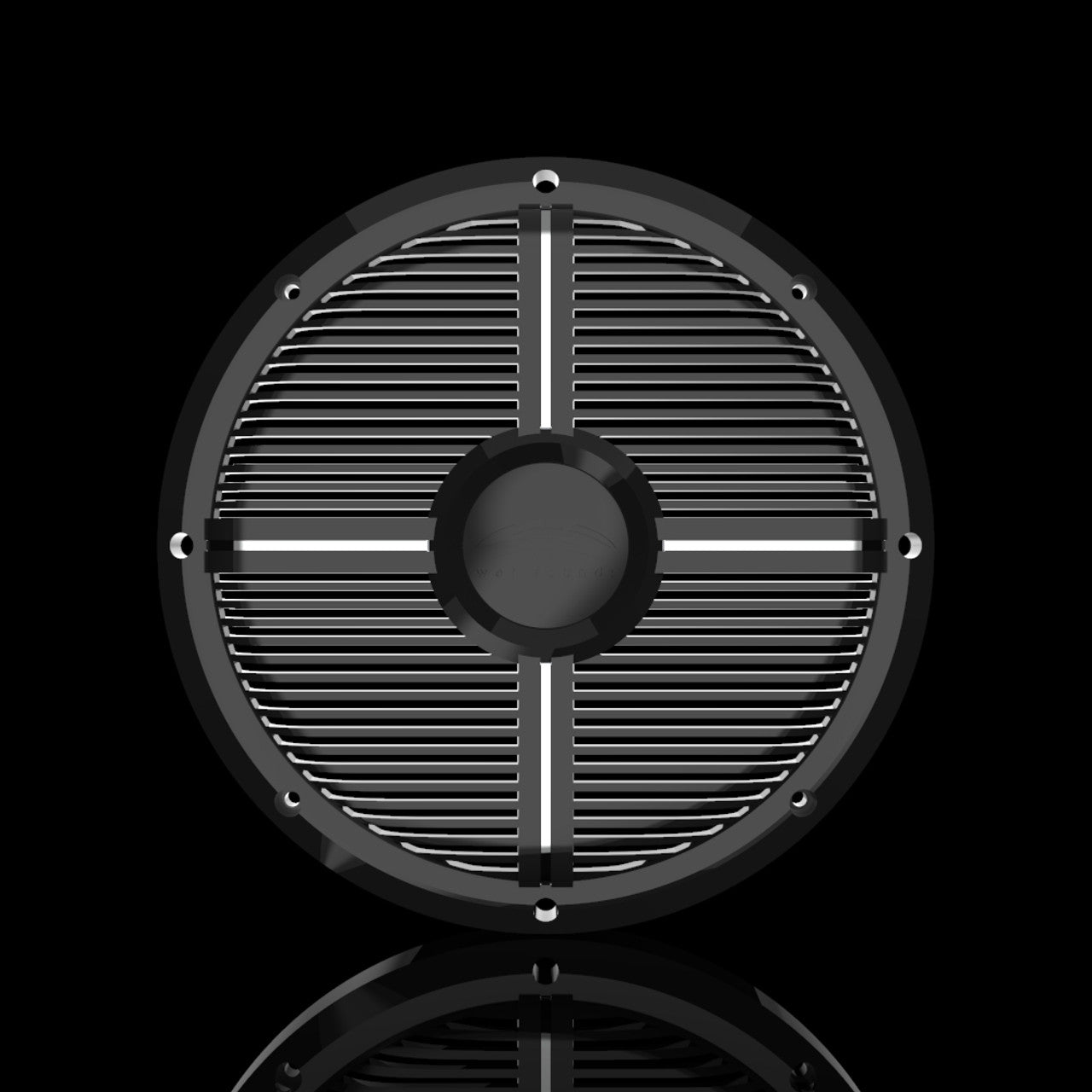

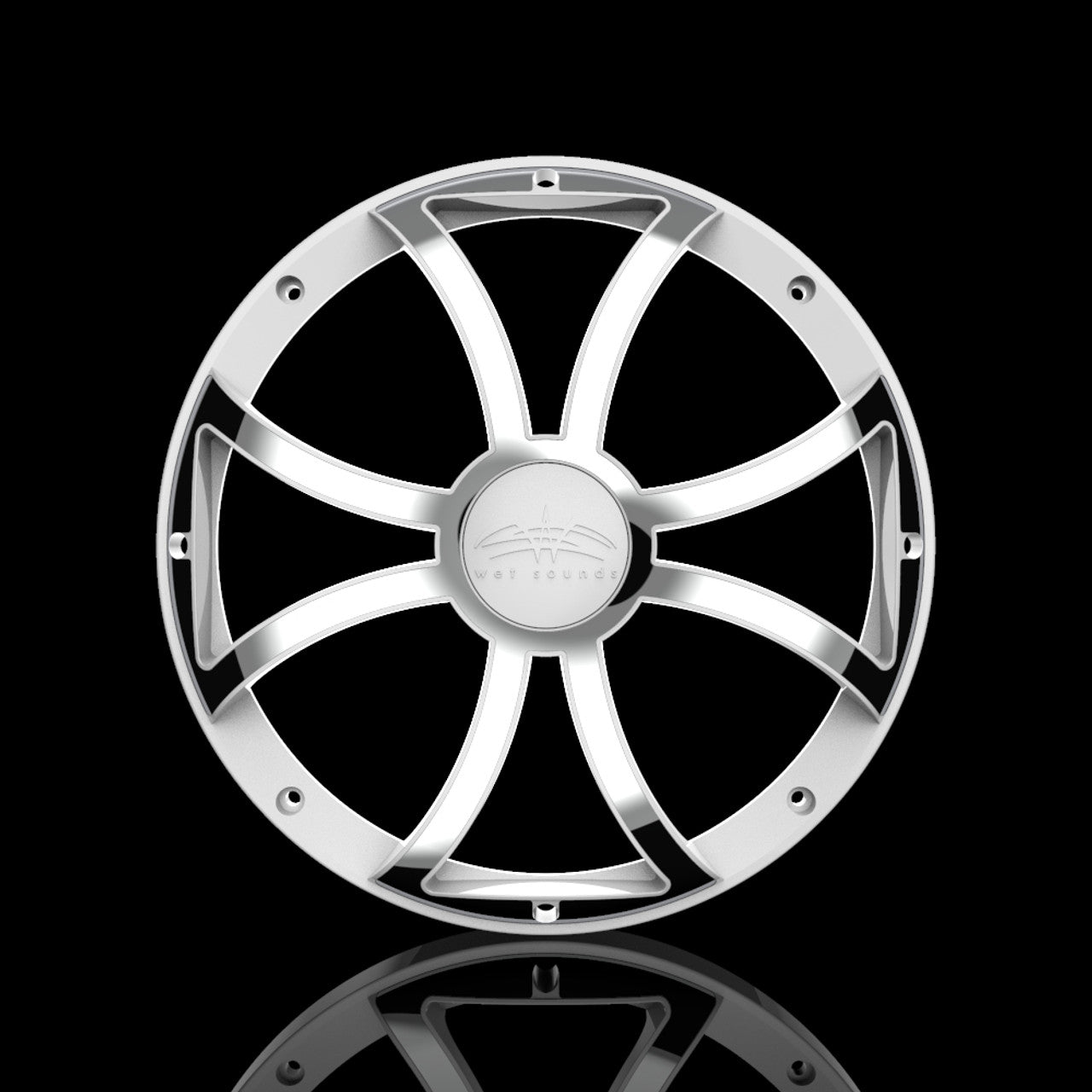

All REVO Subwoofers are sold without grills.8 different grill designs are available separately for all versions of 10” & 12” REVO HP & FA subwoofers.This will enable users to have matching grills on both REVO Coaxial In-Boat speakers & REVO Subwoofers.

Optional RGB LED Kits are available to fit under all REVO 10” & 12” subwoofer grills to enable users to have thousands of LED light display combinations.

RMS Watts: 400 (HP- 500w)

Frequency Response: 20Hz to 400HZ

Hole Cut Out: 11.26 inches (286.0 mm)

Mounting Depth: 4.92 inches (124.96 mm) (HP: 5.19")

Diameter: 12.6 inches w/grill (320.04 mm) (HP 13.25")

Weight: 15 lbs (6.80 kg)

Impedance: 2ohm or 4ohm

Sub Size: 12"

PEAK Watts: 800 (HP: 1000w)

Box Specs: Optimized for Infinite Baffle (Free Air) applications or 1.3 cu ft. sealed enclosure. (HP: Min 1.1 cu ft sealed enclosure or 1.7 cu ft ported)

Sensitivity: 88 db at 1watt/1 meter

Series: REVO

Cone Color: White or Silver

Application Type: Free Air (HP: Enclosure)

🚨 Critical Performance Specifications:

Package Quantity Configuration: Sold Individually (Includes 1 Premium High-Performance Component Unit)
Manufacturer Part Number (MPN): REVO 12 FA S2-B V3
Product Category Component: Subwoofers
Physical Driver Hardware Sizing: 8-Inch Marine Fitment
Nominal Circuit Stability Impedance: 2 Ohms Electrical Resistance
Total Package Boxed Shipping Weight: 12.0 lbs
